MirC Wireless Relay Controller Pair

2-Way Bluetooth Pair with 2 Contact Closure Sender and Receiver with 2 Solid State State Relays

Product Code: MirCSSR2x_ZBT

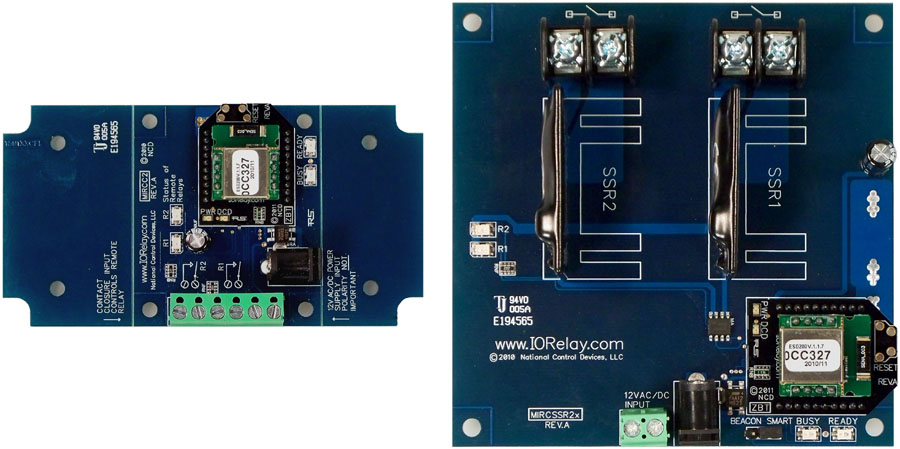

MirCSSR2x_ZBT Controller
The MirCSSR2x_ZBT allows contact closure inputs to control contact closure outputs in another location wirelessly!  Need to control electronics from a remote location?
A MirCSSR2x_ZBT Wireless Relay Pair is all you need.
Compliance to ROHS Standards



2-Way Bluetooth Pair with 2 Contact Closure Sender and Receiver with 2 Solid State State Relays

$226.00/ea


The MirC Series Relay Controllers are ready to go to work immediately out of the box. No computers, no configuration, just simple, reliable wireless communications between two devices that permanently work together as a married pair.  The MirC offers contact closure on the sender board, this will trigger the relay on the receiver board.

Bluetooth MirC Series at a Glance

  • Bluetooth Operation - Sold in Pairs
  • Up to 300' range with External Antenna
  • Contact Closure Inputs on Transmitter
  • Transmitter Device Controls the Receiver Device
     - Contact Closure Inputs on Transmitter
     - Relay Outputs on Receiver
  • Transmitter Displays Status of Remote Relays
  • 2-Way Communication with Verification
  • No Programming, No Configuration, No Computers
  • Beacon Mode Keeps Relay State at Power Loss
  • Smart Mode Turns all Relays Off at Power Loss


This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Learn the basics of the MirX controllers
Also read our Article on The MirX Controller.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

Resources:

This Product:

MirCSSR2x_ZBT
2-Way Bluetooth Pair with 2 Contact Closure Sender and Receiver with 2 Solid State State Relays
Stock#: MirCSSR2x_ZBT $226.00


Development Kit:

MirCSSR2x_ZBT-DK Development Kit
Including:
MirCSSR2x_ZBT
2-Power Supplies
DVD & Manual
Stock#: MirCSSR2x_ZBT-DK $299.00


Power Supply Available

PWR12 Power Supply
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards
Stock#: PWR12 $48/pr

Order Online or Call Us At:
800-960-4287
Fax Purchase Orders To
417-646-5662

The Simplicity of MirC, The Security of Bluetooth

No Computers, No Configuration - Works Right Out of the Box
Contact Closure Inputs Control Relays in a Remote Location - Wirelessly
Reliable Communications Between Two Devices That are a Married Pair

MirC controllers allow contact closure inputs to control contact closure outputs in a remote location using Bluetooth wireless 2-way communications. The sending device is equipped with contact closure inputs, used to control relays on the remote device. Both sender and relay controller are included when you purchase a MirC pair.

The sending device is also equipped with LEDs that display the status of the remote relay. Status information is verified using 2-way wireless communications. If communication is lost between the remote relay and the sending device, the sending device will turn off the LED. Additionally, every MirC controller is equipped with a Busy/Ready LED. If the Busy LED flashes, this indicates the remote device has successfully received and accepted your contact closure status. If the Busy LED does not flash, the remote device is out of range.

The Receiving MirC relay controller has two modes of operation: Beacon and Smart

Solid State: A Practical Alternative to Mechanical Relays!

Mechanical Relays have a good home in low-cost control applications.  But for some users, only solid state switching will do.  Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance.  Many inductive control applications require a solid state relay.  Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.

Beacon Mode:

Beacon Mode provides a very fast communication back to the MirC Sender, indicating relay status. The drawback to this mode is that it generates more radio traffic, so it consumes more power. However, relay status information is displayed on the sender in one second or less. In beacon mode, the relay status will not change if communications is lost between the relay controller and the sender.

Smart Mode:

Smart mode waits for the next communication cycle to report the status of the relay. Relay status information will be available to the sender device within 3 seconds. This mode consumes less power and generates far less radio traffic. Smart mode is recommended for most applications if you can tolerate a 3 second delay. In smart mode, the relay will turn itself off automatically if communications is lost between the relay controller and the sender.

Notes:

MirC devices are only sold as a permanently married pair, pricing shown on our web site indicates pricing for the pair of controllers. Contact Closure Inputs may only be connected to switches, buttons, or sensors with Contact Closure capability. Not suitable for use in voltage detection applications. This MirC device uses Bluetooth two-way communications to ensure the remote device is properly functioning. The Busy LED is always used to indicate a properly functioning remote device. If you do not see the Busy LED flash, then the MirC controller is unable to communicate to the remote device. A flashing busy LED is your verification that all communications are functioning properly between MirC controllers.

Customers who require inductive switching (such as motors, lights, pumps, solenoids, and Transformers) should visit the Induction Suppression portion of our web site.

Bluetooth Wireless Range:

The distance between MirC controllers will affect reliable operation. MirC controllers will offer better range if two MirC controllers are within line of sight of each other. If it is not possible for 2 MirC controllers to see each other, more expensive communications options will improve working distance for most users. You can expect MirC devices to function properly in most applications between 100 feet and up to 300 feet depending on communications module and antenna options chosen. Bluetooth MirC controllers are available with 2 options. The default option is the "Standard Range", which operates up to 100 feet and includes a small integrated antenna that cannot be moved or positioned. The "300 Foot Range" option offers communication between devices up to 300 feet apart (line of sight) and includes a small external antenna.

Product Variations: MirC and MirX Series Controllers

NCD Currently offers 2 variations of this design: MirC and MirX.

MirC: Transmitter Controller and Receiver Controller. The Transmitter Shows the Status of Relays on Receiver Controller. The Transmitter is equipped with Contact Closure Inputs and Remote Relay Status LEDs. The Receiver is equipped with Relays and Relay Status LEDs.

MirX: Each Controller is a Transmitter and a Receiver. The Inputs on One Controller control the Relays on the Opposite Controller. Relay Status is Shown using LEDs on Each controller.

MirC controllers include two circuit boards. The "Local" and "Remote" circuit boards work together to control relays at the remote location from the controller in the Local location. The Local Circuit board has contact closure inputs. When an input change is detected on the Local circuit board, the relay is changed on the Remote circuit board. The Remote Circuit board sends feedback to the Local controller. The LEDs on the Local controller display the status of the relays in the Remote location based on 2-way communications. If communications is lost between the devices, the Remote relay will turn off (If set to Smart Mode). The relay status LED on the Local controller will also turn off. The Remote relay controller is also equipped with LEDs to show the status of the relays. Relay status can be seen on BOTH controllers.

MirX controllers also include two circuit boards. Each controller is a Transmitter and a Receiver, each controller is equipped with contact closure inputs and relays. The local contact closure inputs control the relays at the remote location and vice versa. The LEDs on each controller display the status of the relays ONLY.

Attention: No Voltage Input

Please Note: Users must NEVER apply any voltage to an input on the Mir-C controller, these inputs are for Contact Closure connections only.
