1-Channel 802.15.4 ProXR Lite Relay

ProXR Lite Relay 1-Channel 5-Amp SPDT with ZB ZigBee Interface

Product Code: R15PL_802154

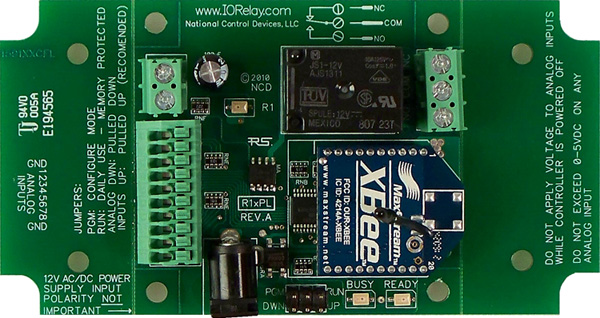

R15PL_802154 ProXR Lite Relay Controller
R15PL_802154 ProXR Lite Controller
The R15PL_802154 features the same ProXR Command set as our more expensive boards without the expandability of a full ProXR controller.


ProXR Lite 802.15.4 Series at a Glance

  • Accurate Surface Mount Machine-Manufactured Design
  • Onboard 802.15.4 Interface Module
      - Requires 802.15.4 Modem
  • Modem Mounts as a Virtual COM Port on Computer
  • Reliable 300' standard module
      - 1 mile Module available
  • Read 0 to 5 Volt Sensors
  • Highly reliable with industry leading command set
      - Program in almost any language
  • Break-A-Way Tabs for Smaller Profile
  • Base Station Software
     - Point & Click Interface
     - Use to Connect to Board
     - Trigger Relays
     - Read Status of Inputs
  • Not Expandable
Wireless Relay
Pro XR Lite with wireless Interface

The R15PL_802154 is equipped with firmware built into the board that will allow you to control one relay at a time, a bank of relays or all relays at once with manual and automatic refreshing command set. The R15PL_802154 Relay uses a 802.15.4 wireless modem connected to the USB port of your computer to communicate.  The modem supports any available COM port at any standard baud rate, allowing easy integration into any program that support serial communications.

R15PL_802154 The Ideal Choice
The R15PL_802154 ProXR Lite Relay is an ideal choice for applications that may require a limited number of Relays, and it's extremely easy to work with since the modem mounts as a COM port on your computer.

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

The R15PL_802154 features the ZigMo modem option and your choice of a standard 300' or 1 mile range module installed on the board for fast and reliable wireless operation!

Resources:

Here's Where to Order:

R15PL_802154
Ratings AC DC
Voltage 240 24
Amperage
ProXR Lite Relay 1-Channel 5-Amp SPDT with ZB ZigBee Interface
Part#: R15PL_802154 $96.00


Power Supply Available

PWR12 Power Supply
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards
Power Supplies $24/ea


Enclosure Available

CFL Enclosure
The CFL Enclosure is an undrilled, non-waterproof enclosure and is available at checkout for these controllers.
Stock#: ENC-CFL $14/ea


Modem Required

XBP24-AUI-EXT_ZIGMO Modem
USB 802.15.4 Modem 100mw Long Range External Antenna + USB Cable/Enclosure

Available at checkout
Stock#: 802.15.4 Modem $138


Induction Supression

Induction Capacitors
Add years to the lifespan of the relay by adding an Induction Capacitor to the line when switching inductive loads.
Induction Suppression $1.99 - $4.89 ea
Available at Checkout

Desktop Control

N-Button Lite
Desktop Control & Monitoring
N-Button creates up to 8 desktop widgets to control relays without any programming.

Order Today with This Board for Only $29
Stock#: N-Button Lite $45

Credit Cards Accepted
PayPal Logo

Shipping and Payment Information
Warranty Information
Order Online or Call Us At:
800-960-4287
Fax Purchase Orders To
417-646-5662

Wireless Relay Control

Connect the Modem to the USB Port
Send Commands Wirelessly to the Board
As Easy as Sending Commands to the USB Port!

About 802.15.4 Wireless

802.15.4 Wireless Relay802.15.4 is not one of the most widely known wireless technologies but it is easy to setup and use, and vey reliable.  You will need a 802.15.4 modem that plugs into your USB port of your computer to talk any number of 802.15.4 relays with a standard range of 300' and up to 1 mile.  You can choose the distance of the module installed at checkout.!

802.15.4 Wireless Modules

802.15.4 wireless ModuleThis board is equipped with a 802.15.4 Module.  The 802.15.4 communications module adds wireless communications to the board.  The 802.15.4 module is powered from the board.  The board itself will require 12 volts of power and can be hard wired or you can purchase a "wall wart" type Power Supply at checkout.  Click the following link for a spec sheet on the XBeeŽ Multipoint RF Modules.

Line-Of-Site Operation

As with any wireless technologies, for optimal performance it needs to be line-of-sight.  In other words the antennas of the board and modem must "see" each other to get the optimal range or even be able to communicate at all.  Select the External Antenna option to provide better range especially when controller will be mounted in an enclosure or behind a wall or obstruction.

External Antenna Option

The External Antenna option is available with the 300' and 1-mile range modules and has a short pig tail that connects to a button on the 802.15.4 external module.  Extension cables can be purchased.  The connector type is RP-SMA (Reverse Polarity SMA).  You will need a cable with RP-SMA Male and RP-SMA Female connectors.  We do not stock these cables or recommend any specific cable.  Antenna extension cables will reduce signal strength and are generally not recommended over 20 feet, though individual results will vary.  Please note that the internal antenna modules (shown above) have antennas that are about an inch long and integrated into the module therefore the external antenna cannot be used on an internal antenna module or added after purchase.  Prices shown are with the 300' internal antenna option, external antenna options are available at checkout.  802.15.4 Modules

802.15.4 Wireless Modem

802.15.4 ModemPlug the XBP24-AUI-EXT_ZIGMO modem into the USB Port of your computer.  The modem will mount as a COM port on your PC.  Open the COM port and start sending data to the modem.  The modem will forward your data to all Wireless 802.15.4 compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).  Mounting slots on the modem make it easy to attach to a wall to allow for line-of-site operation.  The modem is also available at checkout.  802.15.4 Modem

Sending Commands

Base Station Software is available at no charge to get you up and running fast (more on Base Station below).  Once powered up, the controller waits for a ProXR command.  A command consists of a few bytes of data in numerical format (see full Command Set) usually between 2 and 6 bytes.  Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.

Induction Suppression

Induction CapacitorPerhaps the most overlooked aspect of relay control is proper handling of inductive loads. Inductive loads can best be defined as anything with a magnetic coil, such as a motor, solenoid, or a transformer.  Controlling a inductive load using this relay controller requires the use of induction suppression capacitors.  The purpose of this capacitor is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay.  Without this capacitor, the lifespan of the relay will be greatly reduced.  Induction can be so severe that it electrically interferes with the microprocessor logic of our controllers, causing relay banks to shut themselves down unexpectedly.  In the case of Ethernet devices, customers may experience loss of communications until the device is reconnected.  Capacitors that we offer are available at checkout, for more information view our Induction Suppression Video.

SPDT Relay Controller

SPDT RelayThis device has SPDT relays installed.  SPDT Single Pole Double Throw Relays have three connections - Common, Normally Open, and Normally Closed.  When the relay is off, the common is connected to the normally closed connection of the relay.  When the relay coil is energized, the Common swings over to the Normally Open Connection of the Relay.  You can wire the device you are switching to either the Normally Open or the Normally Closed position.  For more information on selecting the correct relay amperage for your application see Choosing a Proper Amperage.

Easy Software Development

Most of our customers write their own program for controlling these devices and use almost any language to do this.  This boards supports the Serial Port Profile, meaning they will mount to the computer as a virtual com port making it very easy to send commands to the device.  This board will support almost any programming language you are comfortable with.

Plug-In for Visual Studio

The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs.  Over 40 samples included with this free download!  Component Library.

Base Station Software

Base StationBase Station will assist you in learning how this device functions and is the ultimate reference tool for setting up, testing and controlling this device.  Base Station software supports every feature of this device - no other controller manufacturer even comes close to offering this type of software.  Base Station works by communicating with your controller to identify the model and provides the appropriate graphical user interface for setting up and testing the identified device.  To help you get started and learn this controller Quick Start Guides are available for just about every feature.  As you discover a feature in Base Station a link is provided where you can easily download the Quick Start Guide.

ProXR Lite Relay

We've looked at the interface and the programming now let's take a look at the board design itself.  The ProXR Lite series controllers are machine manufactured for a highly accurate and reliable design.  Fully tested before they leave the production facility each ProXR Lite controller is ready to stand up to rigorous demands from heat, cold or vibration.  The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions.  Take it from us, these controllers will hold up!

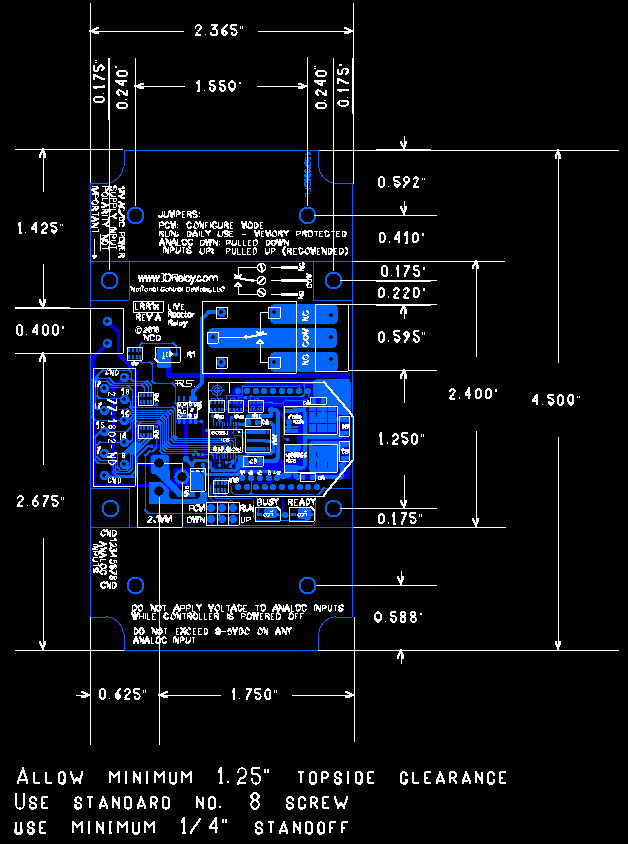

Break-A-Way Tabs for a Smaller Design

The ProXR Lite relays have a great feature where space is a premium - Break-A-Way Tabs. The Break-A-Way Tabs allow most boards to fit in an optional undrilled plastic enclosure.  Snap off the Break-A-Way Tabs and you have a controller with a smaller profile when you need to fit in a tight space.

Not Expandable

Unlike it's big brother, the ProXR Series, the ProXR Lite series controllers are NOT expandable. The firmware still thinks 256 relays are available but the relay portion of the controller only responds to the first 1, 2, 4 or 8 relays in Bank 1.

Read Analog Sensors

We did NOT skip the Analog Input portion of the ProXR Lite.  All ProXR Lite controllers offer a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control.  Read and control from 8 sensors per board from 0 to 5 volts!  Look for more on this below.

Full ProXR Enhanced Firmware Installed

This board has ProXR Firmware installed that responds to the full ProXR Command Set - it's just not expandable.  The ProXR Firmware is the industry leading firmware for controlling relays with more commands and functionality than any other board on the market.  The list of commands and parameters this board is capable of is extensive.  ProXR Enhanced is the newly released enhance version of the ProXR Firmware with more commands, more functionality and better control than ever before!  For a detailed list of all the commands with descriptions see our ProXR Enhanced Command Set.

Compliance to ROHS StandardsRoHS Compliant

This board is led free and RoHS Compliant.  If your requirements are for RoHS compliant parts this board is manufactured with RoHS compliant led free parts and solder.

30-Day Warranty/Money Back Guarantee

ProXR Lite series controllers are guaranteed against manufacturing and functionality defects for a full 30 days!  Not to mention a 30-day money back guarantee!  If for any reason you are not happy with a relay purchased from Relay Pros, simply return it within 30 days and we will give you your money back!  Controllers that are damaged by our customers will not of course be warranted under any circumstances.

Thousands or Relay Cycles

ProXR Lite series controllers are designed for long life, you should expect to get years of service from your controller and literally thousands of cycles from the relay(s) onboard.  With a 30-day warranty and a money back guarantee you have nothing to loose!  Place your order now, while everything is in front of you.

Shipping

The boards sold are brand new units shipped from our office conveniently located in Missouri.  These boards are completely tested before they are released for shipping  With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship.  If you have any questions please feel free to call our office at 800-960-4287 or e-mail us at sales@relaypros.com.

ProXR Lite Is Here!

A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market.  Here's a lists of great features:

    User Friendly Board Design
  • Surface mount allows for a smaller more reliable board
  • Break-A-Way Tabs lets you decide the board's size
  • Screw terminal or direct relay connections make connecting to the board easy

    ProXR Lite Features
  • Works with the full ProXR Enhanced Command Set
  • 8-Channel 8/10-Bit Analog to Digital Converter
  • Highly reliable relay with industry leading command set

    ProXR Lite Limitations
  • This controller cannot be expanded

Analog to Digital Conversion

Analog Inputs are very special in that they are sensitive to voltage changes.  Analog to Digital (A/D) conversion is the process of converting a voltage in the range of 0 to 5VDC into a number that can be processed by custom software that you develop.  The ProXR Command Set will allow you to send a command to the board and read voltage levels from 0-5 volts using 8-bit resolution.  8-Bit resolution will read the voltage input (from 0 to 5VDC) and then is interpreted as a value from 0 to 255.  Zero being a contact closure input.

    For Example
  • A voltage input of 0 Volts is interpreted as a value of 0
  • A voltage input of 2.5 Volts is interpreted as a value of 127
  • A voltage input of 5 Volts is interpreted as a value of 255

So if you divide 5 Volts by 255 possible steps (0-255 for 8-Bit resolution), the board is sensitive to voltage changes as small as 0.019 Volts.  This controller has eight A/D inputs, each input is capable of reading a separate voltage from 0 to 5 VDC, provided all voltages can share a common ground.  This is particularly useful for reading temperature sensors (one temperature sensor is built into select boards mostly 4 & 8 channel, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.

A/D Sample Programs Available

Eight Different A/D Sample programs are available in the Component Library.  These samples are available as a free download and are compatible with Visual Studio.


N-Button Lite

N-Button creates widgets or buttons to control up to eight relays without any programming. A new button will be created and placed on the desktop of your computer for each relay that you want to control. N-Button supports Serial Port/ USB and Network connection between PC and relay board. N-Button Manager makes it easy to add any type of button to the desktop and change the properties.


Analog to Digital meters can also be added to your desktop to instantly read the status of any sensor or probe you may have connected to the board.  Each meter is customizable and can be changed without any programming knowledge.

Relay Button widgets turn on/off relay directly. It has never been so easy to control relays before.
Relay Status widgets show status of the relay automatically.
A/D Meter widgets display the value of A/D channel automatically.
Customized Button widgets can send user-defined data to relay board. It also supports to open or run other file and application.

N-Button Lite version supports up to 8 widgets. If you want to add more than 8 widgets, you need upgrade to the standard version.



This video will introduce you to the world of ZigBee Communications and show you how we integrate ZigBee into our boards.
Also read our Article on ZigBee Communications.



This video will show you how to set up both the hardware and software portions of your ZigBee Relay Controller.
Also read our Article on ZigBee Communications.



This movie will show you how to Troubleshoot your ZigBee Relay Controllers using XCTU Software.
Also read our Article on ZigBee Networking.



This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.



Test of the range of our Wireless Communication Options



Test of the range of our IEE 802.15.4 Wireless Communication Options
