Relay Control with Terminal Block & RS232 Interface
Integrated standard serial and power connector
Convenient Terminal Blocks for easy electronic connections
Highly Reliable Relay Board For Demanding Applications

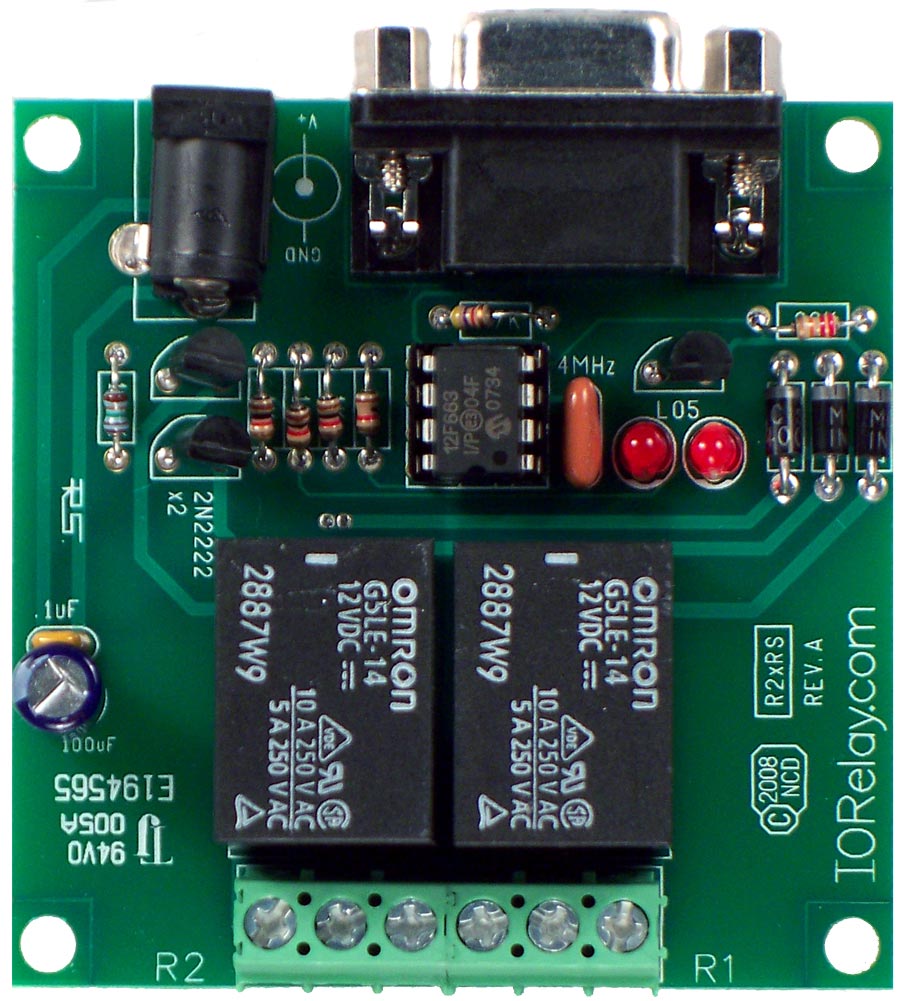

RS-232 Serial Relay Controller
This relay is equipped with terminal blocks for convenient connection of electronic devices. This controller also has on-board serial and power connector. Simply connect the power and serial cables and start sending commands. Power supply and serial cable are available during checkout.
Features include no-click startup, LED status lights, and E3C compliance. Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.
Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on this Relay controller. Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.
To control this Relay Controller, simply connect a data and ground wire between the board and computer or microcontroller. Provide +12 Volts DC to the board (available at checkout), and send ASCII character codes to control the relays.
This Relay Controller is fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port. Mix and match up to 256 devices in any combination. Speak to each device individually or all devices at once.
Connect this board to the USB port of your computer using a USB to Serial adapter. The USB to Serial Adapter is available at checkout.
Fully E3C Complaint RS232 Relay
Our RS-232 Relay Boards are fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port. Mix and match up to 256 devices in any combination. Speak to each device individually or all devices at once.
To control the this Relay Controller, simply connect a data and ground wire between the Relay Controller and computer or microcontroller. Provide +12 Volts DC to the board, and send ASCII character codes to control the relays.
Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on our Serial Relay Controllers. Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.
Features include no-click startup, LED status lights, and E3C compliance. Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.
Desktop Relay Control
N-Button & N-Button Lite is software that allows you to configure buttons to control relays and read the status of those relays without programming. You can also create meters for reading variable input sensors connected to the board in real time! N-Button will allow you to create unlimited widgets and N-Button Lite will allow you to create up to 8 widgets.
|
Relay Button widgets turn relays on/off directly. It has never been so easy to control relays before. |
 |
 |
 |
 |
|
|
|
Relay Status widgets show status of the relay automatically right on the desktop! |
|
 |
 |
 |
N-Button Lite is available as a free download. Look for the Desktop Control section to the right to download.
N-Button Lite version supports up to 8 widgets. If you want to add more than 8 widgets, you need upgrade to the standard version.
Save 40% on N-Button Today
Limited time offer! Order the N-Button Lite with a relay board and get it for the unbelievable price of just $29.00. That's a discount of 40% off the retail price! If you purchase the full N-Button it's just $99.00 with the purchase of a relay board and that's a 41% savings off retail price! Desktop control, sensor meters and backgrounds plus all the customization for just one low price, purchase your copy of N-Button Lite today.
NCD Component Library
Fully functioning programs for R25, R210, R220 and R230 are included with the NCD Component Library. With the NCD Component Library we've "started" the programming for you. We say started because these are fully functioning samples but we've also included the source code so you can customize them to your exact needs. The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs. Two different dual channel samples are available to turn on and off the relays, read the status of the relays and retrieve startup default state of relays. To view screen shots of each sample visit our
NCD Component Library Page. Start by downloading the FREE NCD Component Library and you will be communicating with any NCD device faster that ever!
The above sample demonstrates control and status read of 2 Relays. Compatible with all R2x RS-232 Series Relay Controllers. |
| The above screen shot shows one of two fully functioning dual channel samples that are available with the NCD Component Library. View all the examples on our NCD Component Library Page. |
