Bluetooth ProXR Lite Relay with A/D Conversion
The Most Powerful Command Set Available Anywhere
Read Sensors & Contact Closures with Built-In A/D Conversion
ProXR - The Most Powerful Relays Available!
Our Bluetooth ProXR Series Relay Controllers make it easier than ever to add Bluetooth wireless switching to your most demanding computer or smart phone control applications. Simply pair to your smart phone or computer this controller. The controller mounts as a Virtual COM Port on your PC, allowing easy programming from any language that supports serial communications.
Smart Phone & Computer Pairing
This Bluetooth Relay will be paired with a Bluetooth connection on your smart phone or computer. This involves opening the Bluetooth control panel on your computer, pressing the "pairing" button on our controller, and finally, using the Bluetooth control panel to add the device to the Bluetooth network. Once paired, the NCD part number will appear in your Bluetooth control panel, and a new COM port will be available for use on your computer. To communicate to the device, all you have to do is open the new Bluetooth COM port at 115.2K baud and start sending commands. The Blue LED on our controller will light as soon as the port is opened.
This board is equipped with a ZBT Module. The ZBT communications module adds Bluetooth communications to the board. The ZBT module is powered from the board. The board itself will require 12 volts of power and can be hard wired or you can purchase a "wall wart" type Power Supply
at checkout. Bluetooth Module Options
Configuration is easy with the optional Bluetooth ZigMo Modem. Simply connect it to the USB port of your computer with the supplied cable and you will be able to select a COM port, change the baud rate or enter a security pin code. The Bluetooth ZigMo is available as an option when you purchase your Bluetooth controller. The ZBT module will pull off the board and can be installed in the ZigMo for configuration. You can then configure the baud rate and password settings if you require a secure wireless control. After configuration the ZBT module can be reinstalled in your board and it will be configured to fit your needs. For more information on Bluetooth configuration see Configuring the Bluetooth Module
Base Station Software is available at no charge to get you up and running fast (more on Base Station below). Once powered up, the controller waits for a ProXR command. A command consists of a few bytes of data in numerical format (ProXR Enhanced Command Set
) usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.
Android App Available
The app can be downloaded from the Google Play marketplace
. Currently it allows you to control up to 8 relays each with individual names. All you have to do is download the app, pair with the desired Bluetooth Board, open the app and select the desired device. Select how many relays your board has, name them if desired.
Custom Smartphone App Design
Looking for an app for your Android or iPhone? Need something that our existing apps canít do or need a different look? Contact our app development team to discuss your needs and see how a custom app can be written for your project. Our developers are familiar with this relay and itís command set and can build you an app quicker than other developers Ė this saves you time & money. Our existing apps can also be modified to fit your needs saving you even more time & money! Contact us today and see just how affordable an app can be! Email Travis at: firstname.lastname@example.org
Perhaps the most overlooked aspect of relay control is proper handling of inductive loads. Inductive loads can best be defined as anything with a magnetic coil, such as a motor, solenoid, or a transformer. Controlling a inductive load using this relay controller requires the use of induction suppression capacitors. The purpose of this capacitor is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay. Without this capacitor, the lifespan of the relay will be greatly reduced. Induction can be so severe that it electrically interferes with the microprocessor logic of our controllers, causing relay banks to shut themselves down unexpectedly. In the case of Ethernet devices, customers may experience loss of communications until the device is reconnected. Capacitors that we offer are available at checkout, for more information view our Induction Suppression Video
SPDT Relay Controller
This device has SPDT relays installed. SPDT Single Pole Double Throw Relays have three connections - Common, Normally Open, and Normally Closed. When the relay is off, the common is connected to the normally closed connection of the relay. When the relay coil is energized, the Common swings over to the Normally Open Connection of the Relay. You can wire the device you are switching to either the Normally Open or the Normally Closed position. For more information on selecting the correct relay amperage for your application see Choosing a Proper Amperage
Easy Software Development
Most of our customers write their own program for controlling these devices and use almost any language to do this. This boards supports the Serial Port Profile, meaning they will mount to the computer as a virtual com port making it very easy to send commands to the device. This board will support almost any programming language you are comfortable with.
Plug-In for Visual Studio
The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs. Over 40 samples included with this free download! Component Library
Base Station Software
Base Station will assist you in learning how this device functions and is the ultimate reference tool for setting up, testing and controlling this device. Base Station software supports every feature of this device - no other controller manufacturer even comes close to offering this type of software. Base Station works by communicating with your controller to identify the model and provides the appropriate graphical user interface for setting up and testing the identified device. To help you get started and learn this controller Quick Start Guides are available for just about every feature. As you discover a feature in Base Station a link is provided where you can easily download the Quick Start Guide.

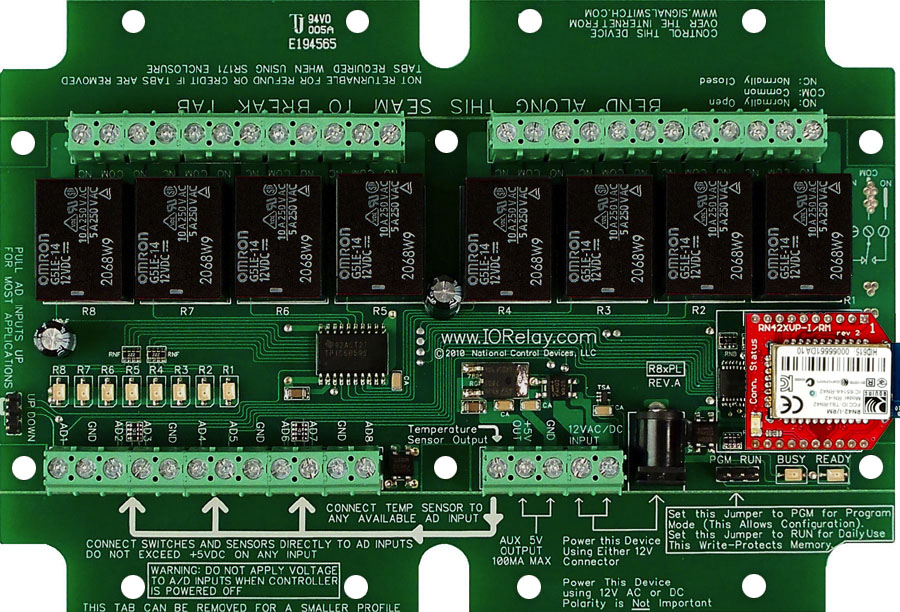

ProXR Lite Relay
We've looked at the interface and the programming now let's take a look at the board design itself. The ProXR Lite series controllers are machine manufactured for a highly accurate and reliable design. Fully tested before they leave the production facility each ProXR Lite controller is ready to stand up to rigorous demands from heat, cold or vibration. The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions. Take it from us, these controllers will hold up!
Break-A-Way Tabs for a Smaller Design
The ProXR Lite relays have a great feature where space is a premium - Break-A-Way Tabs. The Break-A-Way Tabs allow most boards to fit in an optional undrilled plastic enclosure. Snap off the Break-A-Way Tabs and you have a controller with a smaller profile when you need to fit in a tight space.
Unlike it's big brother, the ProXR Series, the ProXR Lite series controllers are NOT expandable. The firmware still thinks 256 relays are available but the relay portion of the controller only responds to the first 1, 2, 4 or 8 relays in Bank 1.
Read Analog Sensors
We did NOT skip the Analog Input portion of the ProXR Lite. All ProXR Lite controllers offer a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. Read and control from 8 sensors per board from 0 to 5 volts! Look for more on this below.
Full ProXR Enhanced Firmware Installed
This board has ProXR Firmware installed that responds to the full ProXR Command Set - it's just not expandable. The ProXR Firmware is the industry leading firmware for controlling relays with more commands and functionality than any other board on the market. The list of commands and parameters this board is capable of is extensive. ProXR Enhanced is the newly released enhance version of the ProXR Firmware with more commands, more functionality and better control than ever before! For a detailed list of all the commands with descriptions see our ProXR Enhanced Command Set
This board is led free and RoHS Compliant. If your requirements are for RoHS compliant parts this board is manufactured with RoHS compliant led free parts and solder.
30-Day Warranty/Money Back Guarantee
ProXR Lite series controllers are guaranteed against manufacturing and functionality defects for a full 30 days! Not to mention a 30-day money back guarantee! If for any reason you are not happy with a relay purchased from Relay Pros, simply return it within 30 days and we will give you your money back! Controllers that are damaged by our customers will not of course be warranted under any circumstances.
Thousands or Relay Cycles
ProXR Lite series controllers are designed for long life, you should expect to get years of service from your controller and literally thousands of cycles from the relay(s) onboard. With a 30-day warranty and a money back guarantee you have nothing to loose! Place your order now, while everything is in front of you.
The boards sold are brand new units shipped from our office conveniently located in Missouri. These boards are completely tested before they are released for shipping With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship. If you have any questions please feel free to call our office at 800-960-4287 or e-mail us at email@example.com.
ProXR Lite Is Here!
A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a lists of great features:
User Friendly Board Design
- Surface mount allows for a smaller more reliable board
- Break-A-Way Tabs lets you decide the board's size
- Screw terminal or direct relay connections make connecting to the board easy
ProXR Lite Features
- Works with the full ProXR Enhanced Command Set
- 8-Channel 8/10-Bit Analog to Digital Converter
- Highly reliable relay with industry leading command set
ProXR Lite Limitations
- This controller cannot be expanded
Analog to Digital Conversion
Analog Inputs are very special in that they are sensitive to voltage changes. Analog to Digital (A/D) conversion is the process of converting a voltage in the range of 0 to 5VDC into a number that can be processed by custom software that you develop. The ProXR Command Set
will allow you to send a command to the board and read voltage levels from 0-5 volts using 8-bit resolution. 8-Bit resolution will read the voltage input (from 0 to 5VDC) and then is interpreted as a value from 0 to 255. Zero being a contact closure input.
- A voltage input of 0 Volts is interpreted as a value of 0
- A voltage input of 2.5 Volts is interpreted as a value of 127
- A voltage input of 5 Volts is interpreted as a value of 255
So if you divide 5 Volts by 255 possible steps (0-255 for 8-Bit resolution), the board is sensitive to voltage changes as small as 0.019 Volts. This controller has eight A/D inputs, each input is capable of reading a separate voltage from 0 to 5 VDC, provided all voltages can share a common ground. This is particularly useful for reading temperature sensors (one temperature sensor is built into select boards mostly 4 & 8 channel, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.
A/D Sample Programs Available
Eight Different A/D Sample programs are available in the
. These samples are available as a free download and are compatible with Visual Studio.
N-Button creates widgets or buttons to control up to eight relays without any programming. A new button will be created and placed on the desktop of your computer for each relay that you want to control. N-Button supports Serial Port/ USB and Network connection between PC and relay board. N-Button Manager makes it easy to add any type of button to the desktop and change the properties.
Analog to Digital meters can also be added to your desktop to instantly read the status of any sensor or probe you may have connected to the board. Each meter is customizable and can be changed without any programming knowledge.
Relay Button widgets turn on/off relay directly. It has never been so easy to control relays before.
Relay Status widgets show status of the relay automatically.
A/D Meter widgets display the value of A/D channel automatically.
Customized Button widgets can send user-defined data to relay board. It also supports to open or run other file and application.
N-Button Lite version supports up to 8 widgets. If you want to add more than 8 widgets, you need upgrade to the standard version.
Attention: 0 to 5 Volt Input
Please Note: Users must ONLY apply a voltage between 0 and 5 volts to the A/D input on this controller, higher voltages will damage the controller.
Attention: Relays Provide No Voltage Output
Please Note: Relays do NOT provide a voltage output. They provide a contact closure output, exactly like the terminals found on a light switch at your local hardware store. Wiring to a relay will be slightly different depending on the model controller you choose.
For wiring information see our Relay Logic page.
