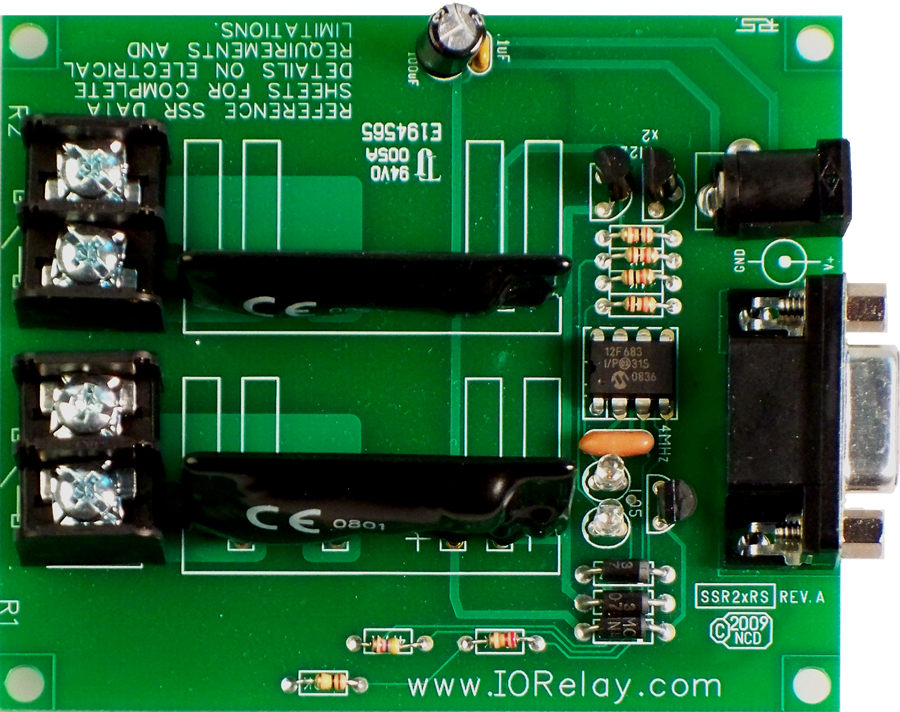

SSR2xRS Solid State Relay

2-Channel Solid State Relay - RS-232 Interface
Relay Screw Terminals & Onboard DB9 Connector

Reliable Serial Communications will suit any control needs.

Control this Device Over the Internet

Signal Switch Compatible

2-Channel Solid State Relay - RS-232 Interface
Relay Screw Terminals & Onboard DB9 Connector

$69.00/ea


Resources

Product Resources:

E3C Compliant	This Device is E3C Complaint allowing 256 NCD Devices to Share a Single RS-232 Serial Port.
Download Manual	Download the Product Manual
Download VB Samples	Download VisualBasic 6 Example Source Code
Download Software	Download Example Software and Source Code

Software Development Tools:

NCD Component Library

The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code.  This free download includes many example applications covering a wide range of topics.

Video Resources

(Select a thumbnail to view the video)

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wired Communications

Learn the basics of wired communications and find the right wired controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

Introduction to A/D

Learn about Analog to Digital Conversion and its uses

How to Find the Com Port

Learn how to find the Com Port that your Device is using

About Expansion Ports

Learn about the Expansion Options available to use with our controllers



This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wired communications and the differences between wired communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.

Solid State Relays Are Not Suitable for Some Applications.
Please Make Sure Solid State Relays Can be Used in Your Application (CLICK HERE)

Features

• Customized your Controller with Up to 8 Solid-State Relays
• Quick Connect Terminal Blocks
• RS232 Port for Direct connection to your Computer
• 16 Background Timers Can be Assigned to Any of the Relays while Processing Your RS232 Commands
• Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
• 9600 Baud Operation
• Full E3C Compliance Allows Control of 256 Different NCD Devices on a Single RS-232 Serial Port
• Four LEDs Indicated Heartbeat, E3C Enabled Status, Data Send/Receive

Solid State Relay

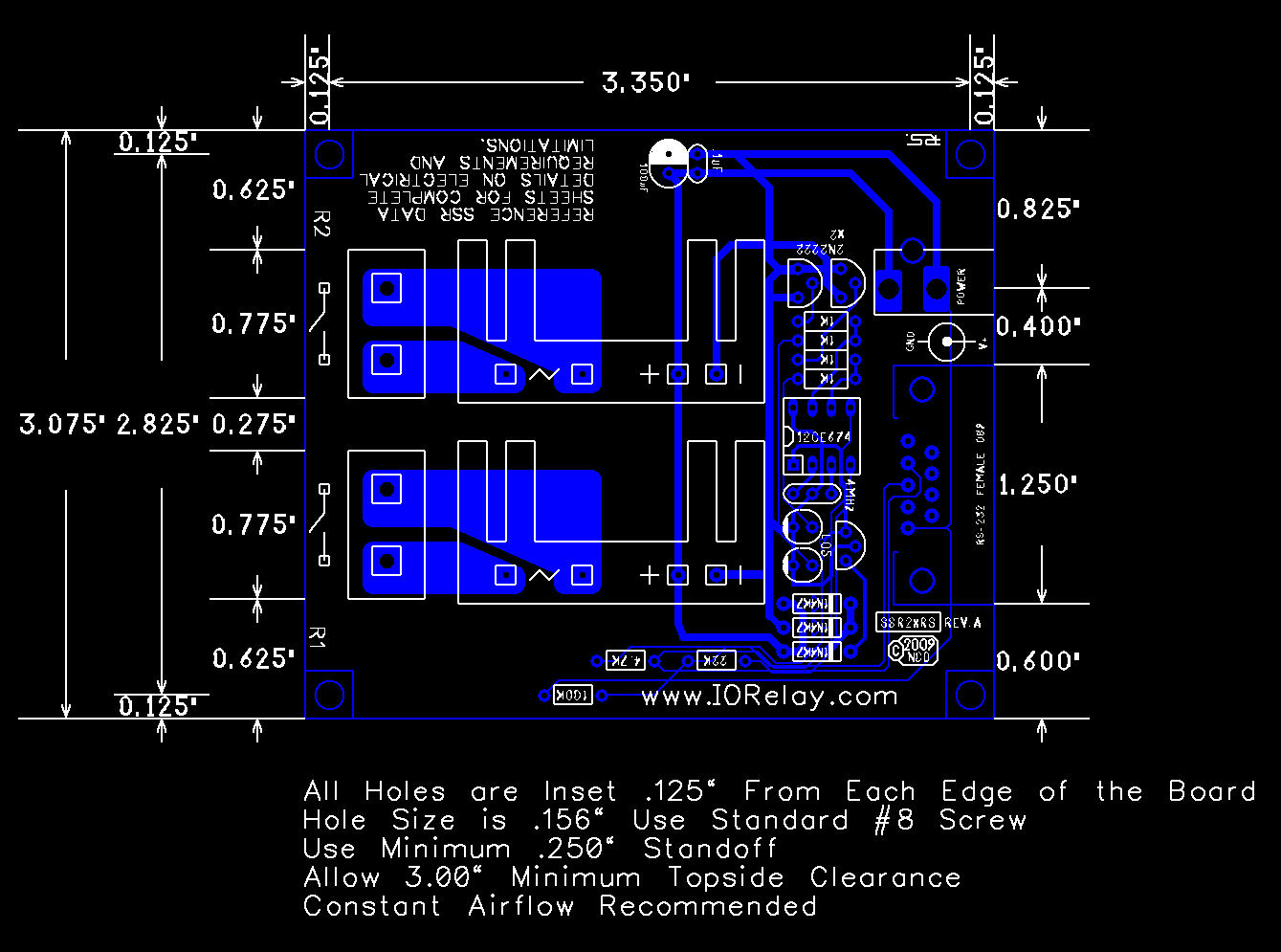

Mechanical Drawing

This Product:

SSR2xRS

	2-Channel Solid State Relay - RS-232 Interface Relay Screw Terminals & Onboard DB9 Connector
Stock#: SSR2xRS
1-9	$69.00

Related Products:

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

Ozarks Audio Visual
www.relaypros.com
800-960-4287

Solid State: A Practical Alternative to Mechanical Relays!

Mechanical Relays have a good home in low-cost control applications.  But for some users, only solid state switching will do.  Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance.  Many inductive control applications require a solid state relay.  Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.

Setup for our RS232 Relay Controller shown above. Simply connect the Power and the Serial Cables and start sending commands.

About Serial Communications

Our RS-232 Relay Boards are fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port.  Mix and match up to 256 devices in any combination.  Speak to each device individually or all devices at once.

To control the this Relay Controller,  simply connect a data and ground wire between the Relay Controller and computer or microcontroller. Provide +12 Volts DC to the board, and send ASCII character codes to control the relays.

Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on our Serial Relay Controllers.  Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.

Features include no-click startup, LED status lights, and E3C compliance.  Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.

Essential Accessories: PWR12 and SER
These Accessories provide everything you need to begin using your RS232 relay controller.  Accessories needed for this board are a high quality regulated switcher supply and a serial cable (shown below).  These items are available at checkout when purchasing the controller.
PWR12 12 Volt 1.25 Amp Power Supply	$24/ea	SER 6 ft. Serial Cable DB9M-DB9F	$6/ea

Choose a Solid State Relay for This Controller:
TYPE A Crydom D2W202F SPST-NO		2A 240VAC Normally Open SPST Zero Crossing Turn On Built-In Snubber Circuit For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature D2W Series Data Sheet	$12.00/each
TYPE B Crydom CX240D5 SPST-NO		5A 240VAC Normally Open SPST Random Turn On For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature CX Series Data Sheet	$15.00/each
TYPE C Crydom CX240D5R SPST-NO		5A 240VAC Normally Open SPST Random Turn On For Use with Inductive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature CX Series Data Sheet	$16.00/each
TYPE D Crydom PF240D25R SPST-NO		25A 240VAC Normally Open SPST Random Turn On For Use with Inductive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet	$28/each
TYPE E Crydom PF480D25 SPST-NO		25A 480VAC Normally Open SPST Zero Crossing Turn On For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet	$30/each
TYPE F Crydom MPDCD3 SPST-NO		3A 60VDC Normally Open SPST For Use with Resistive or Inductive Loads DC Switching ONLY .02A Minimum Load Required 1.5V Maximum On-State Voltage Drop -40 to 80°C Operating Temperature PF Series Data Sheet DC Solid State Connection Diagram	$24/each
NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com.
