XRSSR4x_MIX Solid State Relay

Expansion 4-Channel Solid State Mixed SSR Relay Controller

Solid State Relay Controller
Unmatched Solid State Reliability and Induction Tolerance!
XR Expansion Controllers are Ready to Grow with your Needs!
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

Expansion 4-Channel Solid State Mixed SSR Relay Controller

$89.00/ea



This movie will explain the different expansion options that can be used with our controllers.



This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

Solid State Relays Are Not Suitable for Some Applications.
Please Make Sure Solid State Relays Can be Used in Your Application (CLICK HERE)

Features

  • Customized your Controller with Up to 8 Solid-State Relays
    • Onboard Relay Status LEDs
    • Screw Terminal Connectors
    • Available with SPST, SPDT, DPDT, High-Current and Signal Switching Relays
    • Power LEDs
    • 2.1mm Power Connector
    • Optional Power Supply
    • Includes 6" XR Expansion Cable

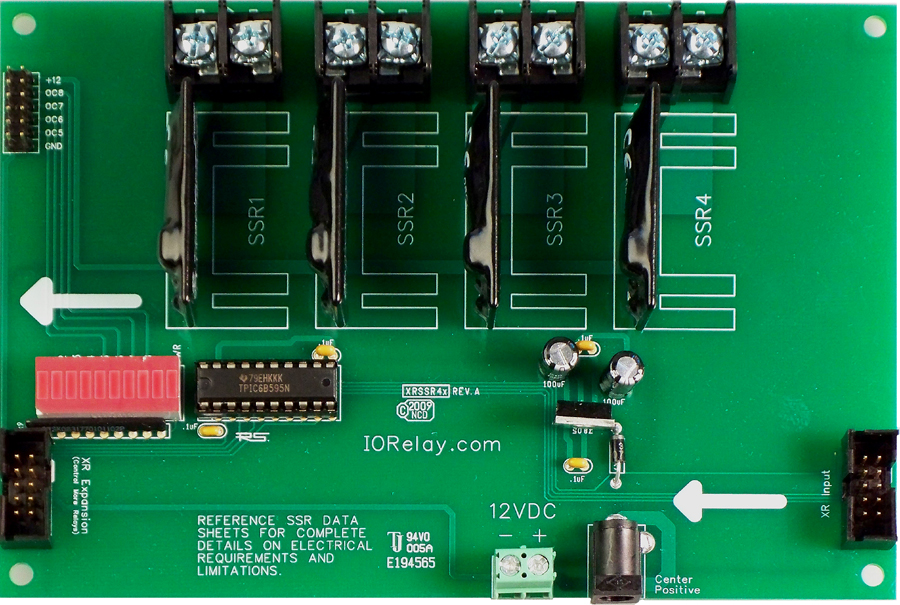

Solid State Relay

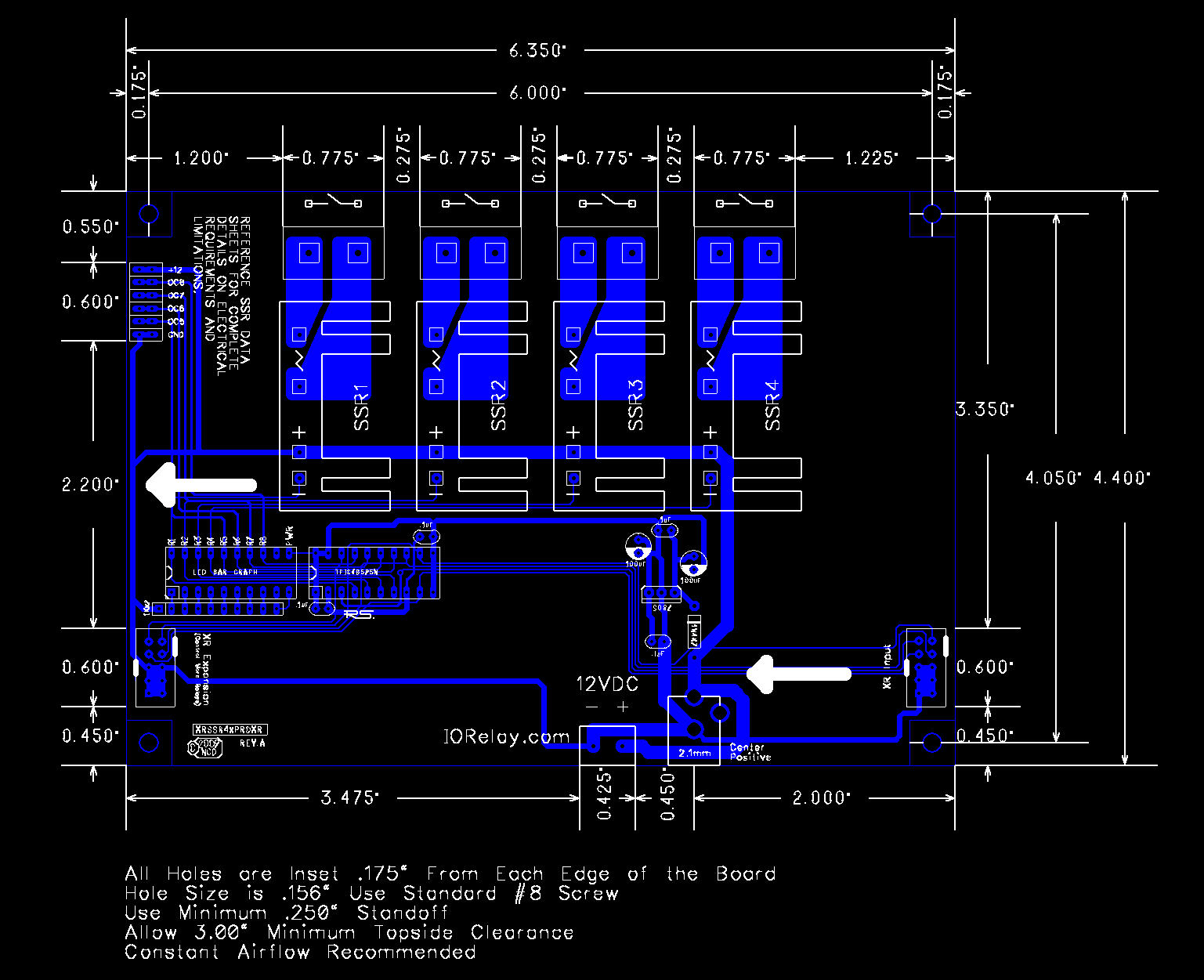

Solid State Relay Mechanical Drawing

Mechanical Drawing

This Product:

XRSSR4x_MIX
Solid State Relay
 Expansion 4-Channel Solid State Mixed SSR Relay Controller
Stock#: XRSSR4x_MIX
1-9 $89.00

Related Products:

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
Ozarks Audio Visual
www.relaypros.com
800-960-4287

Solid State: A Practical Alternative to Mechanical Relays!

Mechanical Relays have a good home in low-cost control applications.  But for some users, only solid state switching will do.  Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance.  Many inductive control applications require a solid state relay.  Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.

Simply connect the XR Expansion Relay to the XR Port of your Relay Controller and power up the device. In no time you'll be talking to the board and any attached Expansion Boards.

Choose a Solid State Relay for This Controller:

TYPE A

Crydom
D2W202F

SPST-NO

 2A 240VAC Normally Open SPST
Zero Crossing Turn On
Built-In Snubber Circuit
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
D2W Series Data Sheet		 $12.00/each

TYPE B

Crydom
CX240D5

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $15.00/each

TYPE C

Crydom
CX240D5R

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $16.00/each

TYPE D

Crydom
PF240D25R

SPST-NO

 25A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $28/each

TYPE E

Crydom
PF480D25

SPST-NO

 25A 480VAC Normally Open SPST
Zero Crossing Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $30/each

TYPE F

Crydom
MPDCD3

SPST-NO

 3A 60VDC Normally Open SPST
For Use with Resistive or Inductive Loads
DC Switching ONLY
.02A Minimum Load Required
1.5V Maximum On-State Voltage Drop
-40 to 80°C Operating Temperature
PF Series Data Sheet
DC Solid State Connection Diagram		 $24/each
NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com.

Expansion 4-Channel Solid State Mixed SSR Relay Controller

  Quantity in Basket: None
Code: XRSSR4x_MIX
Price: $89.00
Shipping Weight: 1.00 pounds


Customize your Controller by Selecting up to 4 Different Relays:
Choose a Relay for Location #1:
Choose a Relay for Location #2:
Choose a Relay for Location #3:
Choose a Relay for Location #4:
RoHS (Lead Free) Options:
Non-RoHS Compliant
RoHS Compliant (+$10)
Do you need a Power Supply?:
No Power Supply will be Included
120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+$24)
100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$36)
Quantity:

Expansion 4-Channel Solid State Mixed SSR Relay Controller
