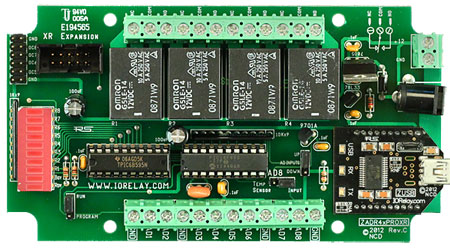

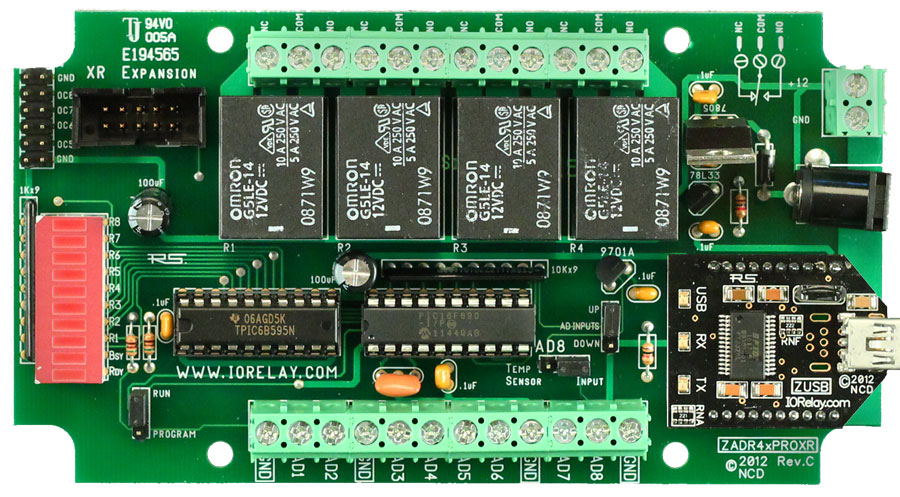

USB ProXR Enhanced with A/D
USB Virtual COM Relay Controller with 8-Channels of
Analog to Digital Conversion and
XR Expansion Port
About USB:
Our USB ProXR Series Relay Controllers make it easier than ever to add computer controlled switching to your most demanding computer control applications. Simply connect to your computer and this controller mounts as a Virtual COM Port on your PC, allowing easy programming from any language that supports serial communications.
This ProXR series controller connects to the USB port of your computer and requires a 12VDC Power Supply. Once powered up, the relay controller waits for a command. A command consists of a few bytes of data. Usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.
Read More About USB Communications
NOTICE: This Device CANNOT be used in inductive control applications. Click Here for More Information
ZUSB Modules
This board is equipped with a ZUSB Module. The ZUSB communications module adds USB communications to all NCD devices equipped to accept modular wireless communication modules. The ZUSB is powered from the USB port of your computer and includes a 6' USB Cable. The ZUSB is available in three varieties:
About ProXR:
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the
XR Expansion Port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
You can send commands to activate relays, deactivate relays, control all the relays at one time, plus you can send commands that tell a relay to turn on for a few seconds, minutes, or hours. You can assign 16 timers to any of the 256 relays, and set the timers to go off after the duration has expired. That's just the beginning, find out more about our
ProXR Command Set.
Read More About the ProXR Standard
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the
NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our
Sensor Page for sensors that have been tested and work with all NCD A/D Boards.
Read More About Analog to Digital Conversion
N-Button Lite
N-Button creates widgets or buttons to control up to eight relays without any programming. A new button will be created and placed on the desktop of your computer for each relay that you want to control. N-Button supports Serial Port/ USB and Network connection between PC and relay board. N-Button Manager makes it easy to add any type of button to the desktop and change the properties.
Analog to Digital meters can also be added to your desktop to instantly read the status of any sensor or probe you may have connected to the board. Each meter is customizable and can be changed without any programming knowledge.
|
Relay Button widgets turn on/off relay directly. It has never been so easy to control relays before. |
 |
 |
 |
 |
|
Relay Status widgets show status of the relay automatically.
|
|
 |
 |
 |
|
A/D Meter widgets display the value of A/D channel automatically. |
 |
 |
 |
 |
|
Customized Button widgets can send user-defined data to relay board. It also supports to open or run other file and application. |
 |
 |
 |
 |
N-Button Lite version supports up to 8 widgets. If you want to add more than 8 widgets, you need upgrade to the standard version.
ALL RELAYS ARE HERMETICALLY SEALED, Relay Controller Requires +12VDC Power Supply, Photos May Show Options or Accessories Not Included with Relay Controller. USB Specification Prohibits Relay Controllers from Being USB Bus Powered due to Surge Currents. NCD will NOT Design/Manufacture a Mechanical Relay Controller that is USB Bus Powered, Please Be Cautious of Any Manufacturer who Offers such a Device.
