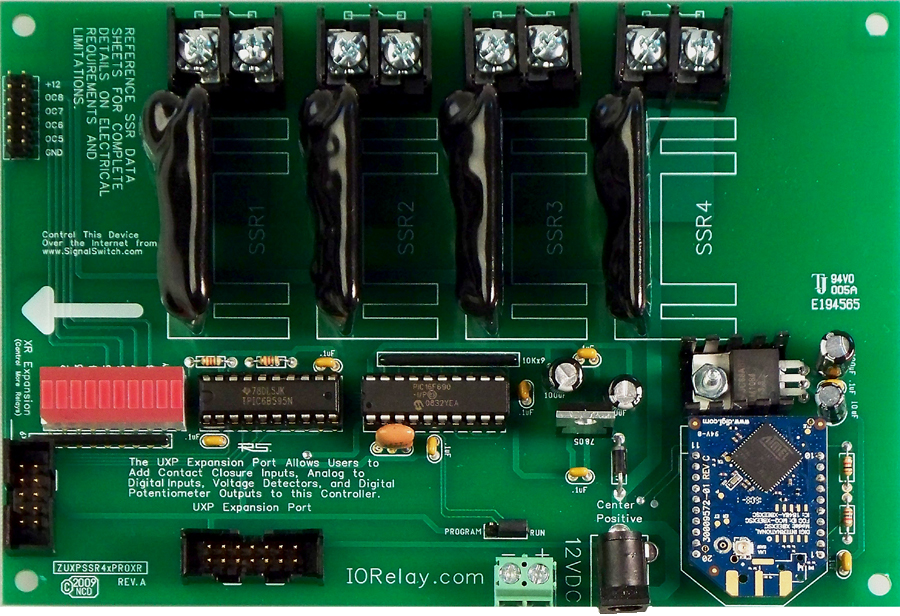

Solid State: A Practical Alternative to Mechanical Relays!
Mechanical Relays have a good home in low-cost control applications. But for some users, only solid state switching will do. Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance. Many inductive control applications require a solid state relay. Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.
Simply connect the XSC Modem to the USB Port of your computer and power up the Modem and the Relay Controller. In no time you'll be talking to the board and any attached Expansion Boards.
XSC Communications
It works like this. Plug our XSC modem of your choice into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all XSC compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).
Long Range Antenna
An outside antenna will need to be installed in order to reach the 15 mile limit of these devices. When you choose this optional antenna we will include everything you will need to install this except for the pole. Included will be the Cushcraft PC9013 antenna, 20 feet of cable (longer cables are not recommended) and the connector to connect the board to the cable. Purchase a pole to mount the antenna from your local home improvement store and install the antenna. Connect the board to the antenna via the provided cable and start sending commands.
ProMOTE Lets you Control NCD Devices from your Phone, PDA, Pocket PC, or Computer! Create your OWN Interface to Control NCD Devices with NO PROGRAMMING!!...Best of All...It's FREE!!!
The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING! Simply download and install the free software, configure the buttons to fit your needs and you're ready to go. With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier!
About Universal Expansion Ports
If you need to add capabilities beyond basic relay control to your application, then you may want to consider using one of our controllers equipped with a UXP Expansion Port. UXP is a standardized data port, specifically for the purpose of speaking to various expansion modules. This Relay Controller is equipped with a UXP port, allowing you to take advantage of extended commands to speak to our growing line of I/O expansion modules.
Read More About Universal Expansion Ports
|
Antenna Options |
| The XSC900SR Short Range Antenna (distance of 1/2 mile) is included with the price of the controller. If you ate looking for longer distances choose the XSC900LR Long Range Antenna (up to 15 miles) option at checkout. |
 |
 |
XSC900SR $49
Short Range
Included with Controller |
 |
XSC900LR $375
Long Range
Includes Pigtail,
Cable, & Antenna |
|
| |
|
|
|
|
Modem Options |
| The XSC Series modems connects to the USB Port of your PC and mounts as a virtual COM port. Simply write your software to talk to the port and you will be talking to XSC wireless devices in no time. You will be able to purchase a modem with your controller during checkout. |
 |
|
UXSCMSR $155
Short Range
Includes Modem,
Pigtail & Antenna |
|
UXSCMLR $484
Long Range
Includes Modem, Pigtail, Cable, & ExternalAntenna |
|
