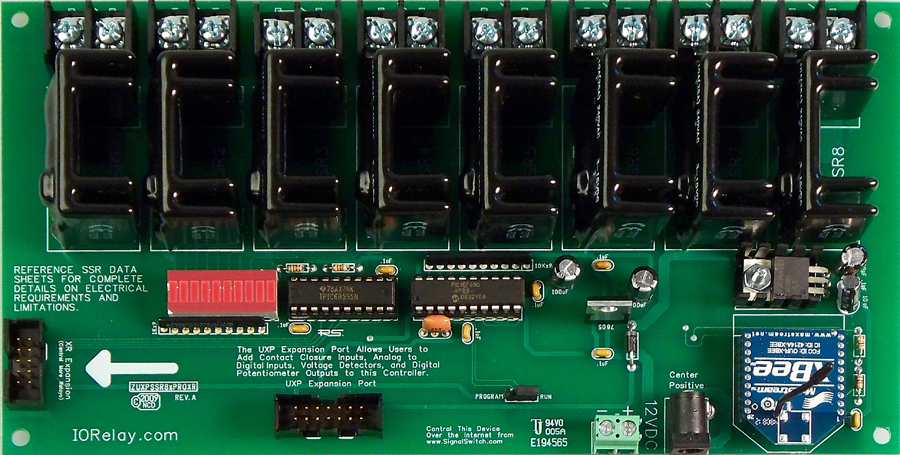

802.15.4 Wireless 8-Channel Solid State Relay Controller + UXP Expansion Port
Unmatched Solid State Reliability and Induction Tolerance!
Wireless Data Collection and Control with Future Expandability in Mind. This ProXR Series IEEE 802.15.4 Controller is Feature Rich and Ready to Grow with your Needs!
Control this Device Over the Internet
Signal Switch Compatible
802.15.4 Wireless 8-Channel Solid State Relay Controller + UXP Expansion Port
The
NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.
Wiring Diagrams
Wiring Diagrams: several simple ways to wire a relay for various applications.
This video will introduce you to the world of ZigBee Communications and show you how we integrate ZigBee into our boards. Also read our Article on ZigBee Communications.
This video will show you how to set up both the hardware and software portions of your ZigBee Relay Controller. Also read our Article on ZigBee Communications.
This movie will show you how to Troubleshoot your ZigBee Relay Controllers using XCTU Software.
Also read our Article on ZigBee Networking.
This video is a basic introduction to the world of Computer Controlled Switching and Relays in general. Also read our "Introduction to Computer Control" Article.
Watch to find out the advantages of wireless communications and the differences between wireless communications. Also read our Articles on Communication Protocols.
This video will show you what Induction is and how to use Capacitors to Suppress it. Also read our Article on Induction Suppression.
Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.
This movie will show you how to find the Com Port assigned to your Relay Controller. The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.
This movie will explain the different expansion options that can be used with our controllers.
Test of the range of our Wireless Communication Options
Test of the range of our IEE 802.15.4 Wireless Communication Options
Solid State: A Practical Alternative to Mechanical Relays!
Mechanical Relays have a good home in low-cost control applications. But for some users, only solid state switching will do. Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance. Many inductive control applications require a solid state relay. Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.
Simply connect the IEEE 802.15.4 Modem to the USB Port of your computer and power up the Modem and the Relay Controller. In no time you'll be talking to the board and any attached Expansion Boards.
Wireless 802.15.4 Communications
Take all the Power of the ProXR Series Relay Controllers; add a MaxStream Wireless 802.15.4 Compliant Interface and Remote Data Collection and Control is Effortless!
It works like this. Plug our Wireless 802.15.4 modem into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all Wireless 802.15.4 compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).
Free ProMOTE Software
ProMOTE Lets you Control NCD Devices from your Phone, PDA, Pocket PC, or Computer! Create your OWN Interface to Control NCD Devices with NO PROGRAMMING!!...Best of All...It's FREE!!!
The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING! Simply download and install the free software, configure the buttons to fit your needs and you're ready to go. With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier!
If you need to add capabilities beyond basic relay control to your application, then you may want to consider using one of our controllers equipped with a UXP Expansion Port. UXP is a standardized data port, specifically for the purpose of speaking to various expansion modules. This Relay Controller is equipped with a UXP port, allowing you to take advantage of extended commands to speak to our growing line of I/O expansion modules.
Above: Our line of Wireless 802.15.4 modems allow first time users to communicate with ANY IEEE 802.15.4 device, even if it was not manufactured by us!!! Just plug the IEEE 802.15.4 Modem into your computer and install the drivers. The IEEE 802.15.4 modem will mount as a COM port on your PC. Next, talk to the COM port as though you were communicating with a RS-232 serial device that is directly connected to your PC.
Choose a Solid State Relay for This Controller:
TYPE A
Crydom
D2W202F
SPST-NO
2A 240VAC Normally Open SPST
Zero Crossing Turn On
Built-In Snubber Circuit
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
D2W Series Data Sheet
$12.00/each
TYPE B
Crydom
CX240D5
SPST-NO
5A 240VAC Normally Open SPST
Random Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet
$15.00/each
TYPE C
Crydom
CX240D5R
SPST-NO
5A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet
$16.00/each
TYPE D
Crydom
PF240D25R
SPST-NO
25A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet
$28/each
TYPE E
Crydom
PF480D25
SPST-NO
25A 480VAC Normally Open SPST
Zero Crossing Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet
$30/each
TYPE F
Crydom
MPDCD3
SPST-NO
3A 60VDC Normally Open SPST
For Use with Resistive or Inductive Loads
DC Switching ONLY
.02A Minimum Load Required
1.5V Maximum On-State Voltage Drop
-40 to 80°C Operating Temperature
PF Series Data Sheet
DC Solid State Connection Diagram
$24/each
NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com.
