2 Channel Reactor Relay Series Controllers

Analog Inputs Trigger Relays
NCD Engineers are currently finalizing the development of a completely new generation relay controller.  The Reactor Relay Series controllers represent the worlds first relay controller capable of making its own intelligent decisions based on user input.  Unlike previous generations, the Reactor Relay Series controllers are configured using our custom Reactor Configuration Utility.  Once configured, the controller works without a computer connected, allowing analog inputs to trigger relays according to the configuration. The Reactor Relay was developed to address the needs of customers who need a controller capable of making intelligent decisions without a computer.  Live Reactor Relays are configured wirelessly.  Once configured, the Reactor will work on its own.  At any time, a remote computer may read analog inputs and take control of the relays.  The remote computer can later return control back to the Reactor logic.
Up to 8 timers and 4 rotations can be configured to control the relay based on 1 analog input.  Programmable Trigger Points can Trigger Timers and Rotation Counters when Analog inputs reach preconfigured levels.

Users may load and save reactor settings into individual files.

New Board Designs
The new Reactor Relay Series features our new surface mount LED lights.  These lights are smaller and brighter than previous generation lights for making relay status easier to read at a glance.  The Reactor Relays will also feature a new board design with Break-Away Tabs.  With the Tabs on, the board will fit into an enclosure.  If your project requires a smaller profile without an enclosure, simply snap off the tabs on each side for a smaller board.

    Over 100 sample files will be included that demonstrate the following features and many more:
  • Temperature Activated Relay
  • Light Activated Relay
  • Motion Activated Relay
  • Programmable Time Delay Relay
  • Motion Activate Sequence of Driveway Lights
  • Programmable Watchdog Timer Relay
  • Relay Background Flashing
  • Input Triggers Complex Relay Timing Sequence
  • Using Multiple Rotations
  • Push Button On/Off Relay Control
  • Push Button Triggers Flashing Relay
  • Push Button Triggers/Cancels Relay Timer Sequence
  • 8-Way Light Switch (8 Light Switches Control 1 Relay)
  • More than 100 Example Configuration Files to be Included!

2 Channel Reactor Relay

Our 2 Channel Reactor Relays feature SPDT & SPST relays and are available eight channel 8-Bit Analog to Digital Conversion on non-Key Fob boards.  2 Channel Relays Interfaces include USB, 802.15.4 Wireless, XSC Long Range Wireless and ZB ZigBee Mesh Networking.

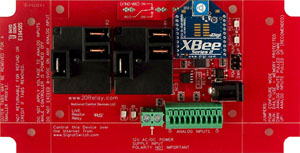

2 Channel Key Fob versions will have 1 channel Analog to Digital Conversion.  All are of course SignalSwitch compatible.		 Reactor Series Controller with Break-Away Tabs
2 Channel Reactor Relay with Break-Away Tabs

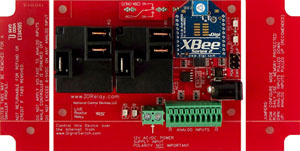

Reactor Series Controller with Break-Away Tabs Removed
2 Channel Reactor Relay with Tabs Broken Out

Reactor Series Controller with Break-Away Tabs Removed
2 Channel Reactor Relay Without Break-Away Tabs

Articles

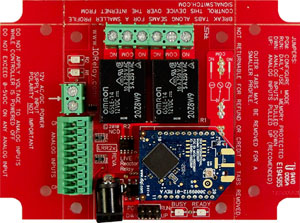

New to Reactor Relay? Click the following links for helpful wireless articles to get you started. 		2 Channel XSC Reactor Relay With Break-Away Tabs
2  Channel XSC Reactor Relay

A/D Conversion
8 Channel Analog to Digital Converter
Key Fob Control
Control Relay with a Key Ring Fob

Onboard analog to digital conversion is available on selected models of these controllers! This will allow you to:

  • Read light and temperature levels
  • Easily activate relays when A/D limits are reached
  • Detect audio levels in a room when connected to a microphone
  • Read switches, potentiometers, and analog joysticks
  • applications are limitless, and surprisingly easy to integrate
  • Available on select boards

Put the power of computer controlled switching in your hand!  Users can control relays with the touch of a button you hold in your hand! Touch a button and a command to will be sent to a Reactor Relay Series board that has a key fob chip installed to activate a relay.  Each Key Fob button can be programmed to control up to 8 relays in any number of ways.  UXP in the part number allows you to:

  • Garage Door Opening/Closing
  • Override Existing Programming
  • Lighting Applications
  • Pump Activation
  • Manual Reactor Relay Override
  • Anywhere You Need Quick On-Location Switching


Part 1: An Overview of Reactor Series Relay Controllers.



Part 2: All about Reactor Series Controller Inputs.



Part 3: All about Reactor Series Controller Events.



Part 4: All about Reactor Series Controller Outputs.



Part 5: Learn how to use the NCD Configuration Utility to Setup your Reactor Controller.



2-Channel Reactor Relays
LRR210_802154
2-Channel 10-Amp Relays with Wireless Interface
Sensor Activated Relay Control
  • 2 - 10 Amp SPDT Relay(s)
  • 802.15.4 Interface
  • Range: 300 ft. to 1 mi.
  • 8 Variable Sensor Inputs
  • Screw Terminal Connections
  • Sensor Activated Series
$128.00
Full Description>
LRR210_USB
2-Channel 10-Amp Relays with USB Interface
Sensor Activated Relay Control
  • 2 - 10 Amp SPDT Relay(s)
  • USB Interface
  • 8 Variable Sensor Inputs
  • Screw Terminal Connections
  • Reactor Series
$139.00
Full Description>
LRR210_XSC
Reactor Relay 2-Channel 10-Amp SPDT + 8-Channel 8-Bit A/D with XSC Interface
  • 2 - 10 Amp SPDT Relay(s)
  • XSC Interface
  • Range: 1 mi. to 15 mi.
  • Reactor Series
$193.00
Full Description>
LRR210_ZBMESH
Reactor Relay 2-Channel 10-Amp SPDT + 8-Channel 8-Bit A/D with ZB ZigBee Interface
  • 2 - 10 Amp SPDT Relay(s)
  • ZigBee Interface
  • Range: 300 ft. to 1 mi.
  • Reactor Series
$128.00
Full Description>
LRR210_ZETH-ME
2-Channel 10-Amp Relay with Ethernet Interface
Sensor Activated Relay Control
  • 2 - 10 Amp SPDT Relay(s)
  • Ethernet Interface
  • 8 Variable Sensor Inputs
  • Screw Terminal Connections
  • Sensor Activated Series
$178.00
Full Description>
LRR220_802154
2-Channel 20-Amp Relays with Wireless Interface
Sensor Activated Relay Control
  • 2 - 20 Amp SPDT Relay(s)
  • 802.15.4 Interface
  • Range: 300 ft. to 1 mi.
  • 8 Variable Sensor Inputs
  • Direct Relay Connections
  • Sensor Activated Series
$138.00
Full Description>
LRR220_USB
2-Channel 20-Amp Relays with USB Interface
Sensor Activated Relay Control
  • 2 - 20 Amp SPDT Relay(s)
  • USB Interface
  • 8 Variable Sensor Inputs
  • Direct Relay Connection
  • Reactor Series
$149.00
Full Description>
LRR220_XSC
Reactor Relay 2-Channel 20-Amp SPDT + 8-Channel 8-Bit A/D with XSC Interface
  • 2 - 20 Amp SPDT Relay(s)
  • XSC Interface
  • Range: 1 mi. to 15 mi.
  • Reactor Series
$203.00
Full Description>
LRR220_ZBMESH
Reactor Relay 2-Channel 20-Amp SPDT + 8-Channel 8-Bit A/D with ZB ZigBee Interface
  • 2 - 20 Amp SPDT Relay(s)
  • ZigBee Interface
  • Range: 300 ft. to 1 mi.
  • Reactor Series
$138.00
Full Description>
LRR220_ZETH-ME
2-Channel 20-Amp Relay with Ethernet Interface
Sensor Activated Relay Control
  • 2 - 20 Amp SPDT Relay(s)
  • Ethernet Interface
  • 8 Variable Sensor Inputs
  • Direct Relay Connections
  • Sensor Activated Series
$188.00
Full Description>
LRR230_802154
2-Channel 30-Amp Relays with Wireless Interface
Sensor Activated Relay Control
  • 2 - 30 Amp SPST Relay(s)
  • 802.15.4 Interface
  • Range: 300 ft. to 1 mi.
  • 8 Variable Sensor Inputs
  • Direct Relay Connections
  • Sensor Activated Series
$148.00
Full Description>
LRR230_USB
2-Channel 30-Amp Relays with USB Interface
Sensor Activated Relay Control
  • 2 - 30 Amp SPST Relay(s)
  • USB Interface
  • 8 Variable Sensor Inputs
  • Direct Relay Connection
  • Reactor Series
$159.00
Full Description>
LRR230_XSC
Reactor Relay 2-Channel 30-Amp SPST + 8-Channel 8-Bit A/D with XSC Interface
  • 2 - 30 Amp SPST Relay(s)
  • XSC Interface
  • Range: 1 mi. to 15 mi.
  • Reactor Series
$213.00
Full Description>
LRR230_ZBMESH
Reactor Relay 2-Channel 30-Amp SPST + 8-Channel 8-Bit A/D with ZB ZigBee Interface
  • 2 - 30 Amp SPST Relay(s)
  • ZigBee Interface
  • Range: 300 ft. to 1 mi.
  • Reactor Series
$148.00
Full Description>
LRR230_ZETH-ME
2-Channel 30-Amp Relay with Ethernet Interface
Sensor Activated Relay Control
  • 2 - 30 Amp SPST Relay(s)
  • Ethernet Interface
  • 8 Variable Sensor Inputs
  • Direct Relay Connections
  • Sensor Activated Series
$198.00
Full Description>
LRR25_802154
2-Channel 5-Amp Relays with Wireless Interface
Sensor Activated Relay Control
  • 2 - 5 Amp SPDT Relay(s)
  • 802.15.4 Interface
  • Range: 300 ft. to 1 mi.
  • 8 Variable Sensor Inputs
  • Screw Terminal Connections
  • Sensor Activated Series
$118.00
Full Description>
LRR25_USB
2-Channel 5-Amp Relay with USB Interface
Sensor Activated Relay Control
  • 2 - 5 Amp SPDT Relay(s)
  • USB Interface
  • 8 Variable Sensor Inputs
  • Screw Terminal Connections
  • Reactor Series
$129.00
Full Description>
LRR25_XSC
Reactor Relay 2-Channel 5-Amp SPDT + 8-Channel 8-Bit A/D with XSC Interface
  • 2 - 5 Amp SPDT Relay(s)
  • XSC Interface
  • Range: 1 mi. to 15 mi.
  • Reactor Series
$183.00
Full Description>
LRR25_ZBMESH
Reactor Relay 2-Channel 5-Amp SPDT + 8-Channel 8-Bit A/D with ZB ZigBee Interface
  • 2 - 5 Amp SPDT Relay(s)
  • ZigBee Interface
  • Range: 300 ft. to 1 mi.
  • Reactor Series
$118.00
Full Description>
LRR25_ZETH-ME
2-Channel 5-Amp Relay with Ethernet Interface
Sensor Activated Relay Control
  • 2 - 5 Amp SPDT Relay(s)
  • Ethernet Interface
  • 8 Variable Sensor Inputs
  • Screw Terminal Connections
  • Sensor Activated Series
$168.00
Full Description>
LRSSR2x_USB
Reactor Relay 2-Channel Solid State + 8-Channel 8-Bit A/D with USB Interface
  • USB Interface
  • Reactor Series
$129.00
Full Description>
LRSSR2x_ZBMESH
Reactor Relay 2-Channel Solid State + 8-Channel 8-Bit A/D with ZB ZigBee Interface
  • ZigBee Interface
  • Range: 300 ft. to 1 mi.
  • Reactor Series
$118.00
Full Description>
LRSSR2x_ZBMESH_MIX
Reactor Relay 2-Channel Solid State Mix + 8-Channel 8-Bit A/D with ZB ZigBee Interface
  • ZigBee Interface
  • Range: 300 ft. to 1 mi.
  • Reactor Series
$118.00
Full Description>
