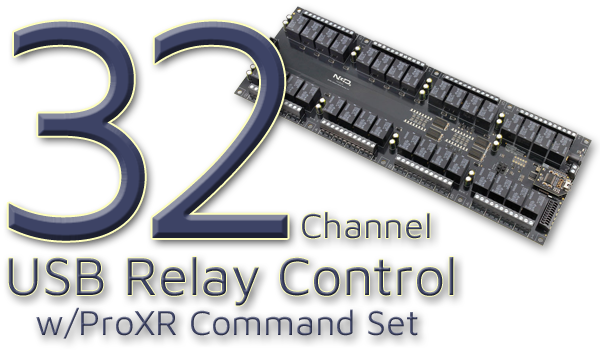

USB Relay

USB Controlled Relay at a Glance...

  • 32 Relays Installed on a Circuit Board
  • Onboard USB Interface Module
      - Plugs Directly into USB Port
      - Mounts as a Virtual COM Port
  • ProXR Versions
      - Industry Leading Command Set
      - Expandable to 256 Relays
  • Industry Leading Command Set
      - Send Specific Commands to Trigger Relays
      - Trigger Any or All Relays
      - Program in Almost any Language
      - Read 0 to 5 Volt Sensors

Selecting The USB Interface

USB Controlled RelayBy selecting the USB interface you will be sending commands through the USB port of your computer to the board.  Boards on this page are equipped with a ZUSB communications module that adds USB communications to the board.  A command consists of a few bytes of data in numerical format usually between 2 and 6 bytes.  Once the command has been received, the controller processes the command and the relay activates.

Selecting a USB Controlled Relay

Below you will find the 32-channel USB Controlled Relays that are available.  The difference being the amperage of the relays installed and the type of relay.  Choose the controller that fits the amperage you are switching.  You will find SPDT relays in the 5, 10 and 20 amp versions and an SPST version in 30 amp.  DPDT versions are also available with 1, 3 or 5 amp relays installed.  For more information on selecting the correct relay for your application see Choosing a Proper Amperage.

Selecting a USB Relay Series

The 32-Channel boards are available in the ProXR versions. The boards have firmware installed and accept the ProXR command set. The ProXR Command Set is the industry leading command set for controlling relays. All ProXR controllers are expandable to 256 relays. When you find your controller click on the Full Description link to view full specs, watch setup videos, download software and purchase.
