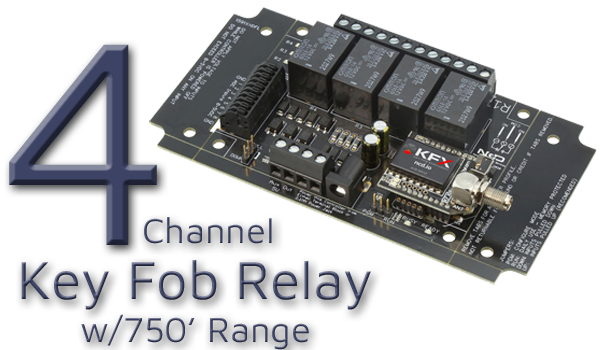

Key Fob Relay - 4-Channel

Select an Interface Below

Key Fob Relay

Reactor Relay All The Features You Need...

  • 4 Relays Installed on Circuit Board
  • Analog Inputs Also Trigger Relay
  • 7 Interfaces Available
  • Programmable Key Fob
     - Distance 200 to 300 Feet
     - Multiple Buttons for Different Functions
     - Multiple Functions for Each Button
  • Key Fob Options
     - Multiple Key Fobs Per Board
     - Multiple Boards Per Key Fob
  • A/D Input Configuration options
     - 256 Different Trigger Points
     - 8 Background Timers Available
     - 4 Rotation Counters Available
     - Configure Activation Sequences
  • Base Station Software
     - Point & Click Interface
     - Use to Configure Board
     - Read Sensor Levels
     - Read Status of Relays
     - Manually Trigger Relays

Key Fob Relays
Key Fob Triggers the Relays

Key Fob Relays are equipped with firmware built into the board that will allow you to setup a configuration to trigger relays with a handheld key fob or sensor.  The 4-Channel Key Fob boards have three analog inputs for analog to digital conversion where the board will convert a voltage of 0 to 5 volts into a numeric value of 0 to 255.  Relays can be triggered based on the numeric values of the sensors and also the key fob.  Configurations will be made using Base Station Software, a free download, and stored to the board.  Once stored, the computer is no longer needed and the relays will activate according to your configuration.

Time Delay and More
Delays and sequences can be stored into the board when the input level is reached or a key fob button is pushed.  Configurations can be as simple as toggling a relay to complex sequences where multiple relays and delays can be involved.  All done without the use of a computer once the configuration is uploaded to the board.

Key Fob Relay
Time Delays can be set before or after the key fob button is pushed
200 to 300 Foot Key Fob Range
Key Fob Relay You Can Count On!

Selecting an Interface

How would you like to configure the board?  Below you will find all the 4-Channel Key Fob Relay interfaces that are available.  Each section is broken down by the interface installed on the board.  The interface will determine how you will communicate to the board with your computer.  You will configure the board using the free Base Station Software, once configure the computer is no longer needed!  Choose the interface you require and click that link.  This will bring you to a page where you will select a board based on amperage of the relay installed.
