8 Channel Mir-X Relay

Mir-X with 8 Relays Installed

All The Features You Need...

• Sold in Pairs
• Each Device Controls the Other Device
   - Local Inputs Control Remote Relays
   - Remote Inputs Control Local Relays

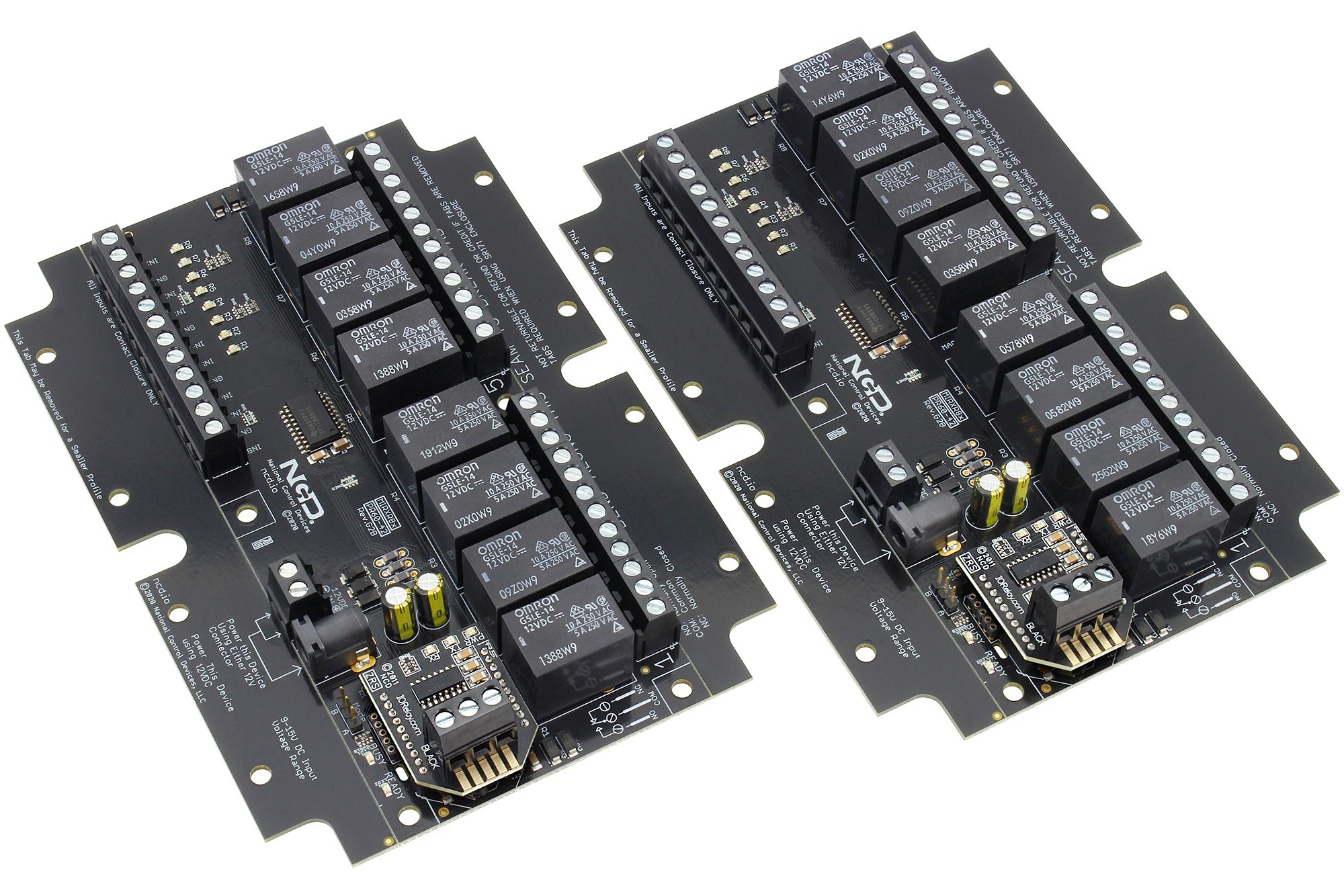

• Wired Operation Up to 1000'
   - Using 3-Wire Cable
• Wireless Operation up to 2 Miles
   - Line of Sight Operation

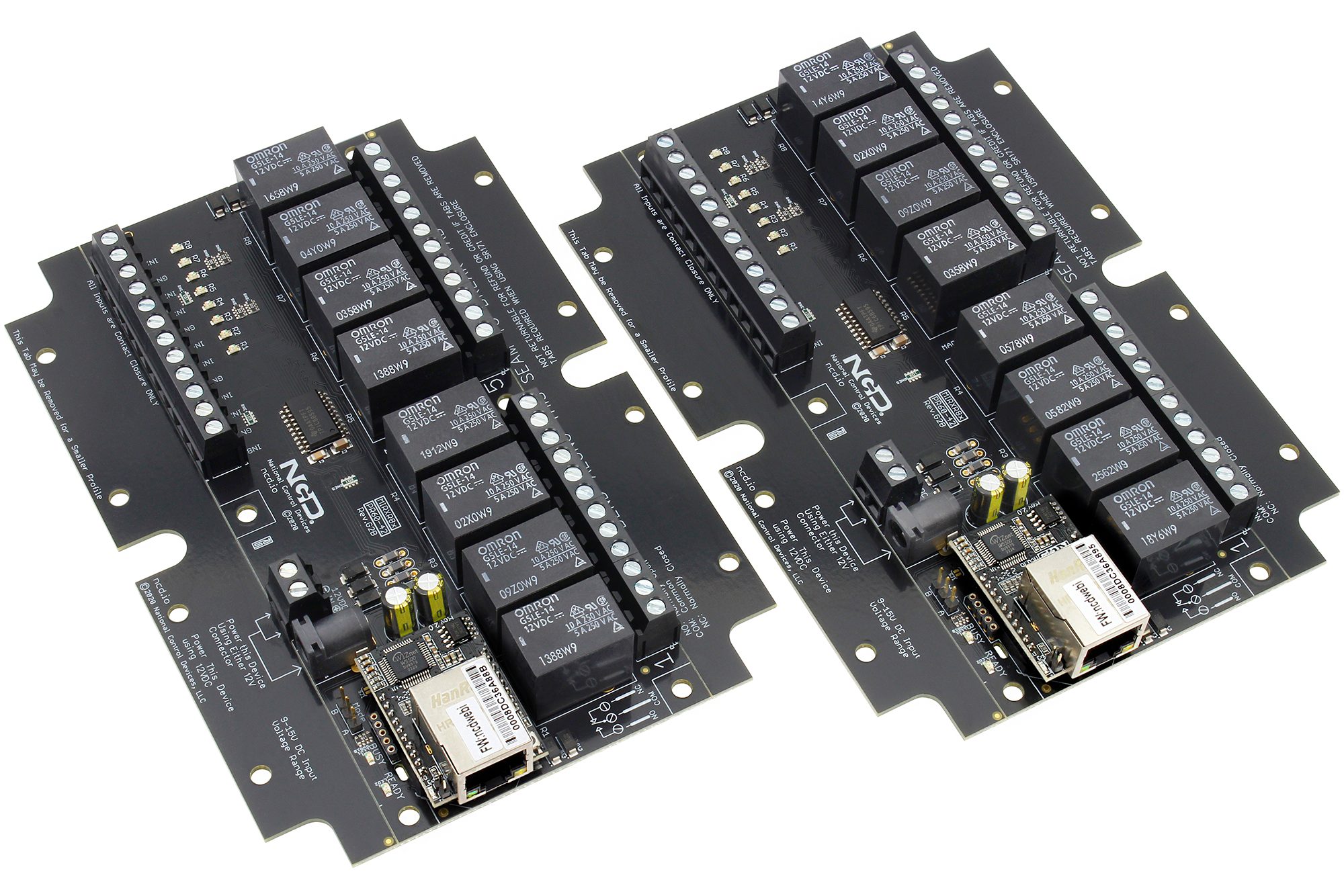

• Internet Operation Unlimited
   - Will Find Each Other with Internet Connection
• No Computer, No Programming, No Set-Up
• Works Together Right Out of the Box!

Mir-X Relays
Unique Contact Closure Switching
Mir-X Relays are equipped with firmware built into the board that will allow contact closure inputs to control contact closure outputs in a remote location. The Mir-X Relays are sold in pairs and each device has contact closure inputs and relays, what's different is that the contact closure inputs control the relays on the other device.  This easily allows contact closure switching in a remote location through a wired, wireless or Ethernet connection.

No Set-up, No Configuration...
Works Right Out of the Box!

The Mir-X Contact Closure Relay Controllers are ready to go to work right out of the box. Just Simple, Reliable Communications between two devices. Simply connect a Contact Closure input and the relay on the remote board will trigger!

Other Contact Closure Relay Options:

MirC Relay Pair
Contact Closure Relay

Category Link: MirC Relay

Sender Controls Receiver Device   - Contact Closure Inputs on Sender   - Relay Outputs on Receiver Wired, Wireless & Internet Operation No Programming Required

Reactor Relays
Also Accepts Variable Inputs

Category Link: Reactor Controllers

Contact Closure Input Compatible Variable Input Sensor can Trigger Relays at any Defined Point Works without a Computer Configure with Included Software Software Can Trigger Relays

Key Fob Time Delay
Great for Button Applications

Category Link: Key Fob Control

Key Fob Can Trigger Relays Key Fob Can Override Contact Closures can Trigger Relays Configure with Included Software Software Can Trigger Relays

ProXR Lite Relays
User-Programmable Inputs

Category Link: ProXR Lite

8 Inputs on Controller Contact Closure Inputs Variable Input Detection Built-In Temperature Sensor Write Your Own Program to Send Commands to Board

N-Button Lite Software
Desktop Contact Closure

N-Button Lite Software

Read Status of Contact Closure Inputs Meters Measure Variable Input Trigger Relays with Desktop Button Trigger Multiple Relays per Button Compatible with ProXR Boards

8 Channel Mir-X Contact Closure Relay

No Computers, No Configuration - Works Right Out of the Box
Inputs on One Controller Activate the Relays at the Other Controller
Wired, Wireless or Ethernet Communications Available

Two Boards Working Together

Every MirX controller is equipped with contact closure inputs and outputs. The inputs on one controller activate the relays on the remote device using wireless communications. The "X" in MirX refers to the crossover. Since both devices are equipped with contact closure inputs and relays, each device targets and controls the remote device.

MirX devices are only sold as a permanently married pair, pricing shown on our web site indicates pricing for the pair of controllers.

Relay Status

Mir-X devices feature SPDT & SPST relays in four different amperage options and are available with the same number of contact closure inputs as there are relays installed on the device.  Contact Closure Inputs may only be connected to switches, buttons, or sensors with Contact Closure capability.  Not suitable for use in voltage detection applications.

Who's Qualified to Use the Mir-X Series?

Anyone. The Mir-X Series Controllers are the most consumer friendly devices at Relay Pros. Weather you are an electronics engineer or home hobbyist, anyone is qualified to use the Mir-X Series controller.

Easy Board Selection

Shop Mir-X Here MirX Relays Contact Closure Inputs Control Relays in Two Locations 1-Channel 2-Channel 4-Channel 8-Channel

Find the board you need by using the interactive menu to he right.  Hover over the Button and select the number of relays you want installed and then select the computer interface you need.  Once there simply select the board with the correct amperage for the item you are switching.

Relay Status

Each device is also equipped with LEDs that display the status of the remote relay. Status information is verified using 2-way communications. If communication is lost between the two devices, the sending device will turn off the LED. Additionally, every MirX controller is equipped with a Busy/Ready LED. If the Busy LED flashes, this indicates the remote device has successfully received and accepted your contact closure status. If the Busy LED does not flash, the remote device is out of range.

Communication Between Boards

Mir-X devices use 802.15.4 wireless, wired and Ethernet two-way communications to ensure the remote device is properly functioning. The Busy LED is always used to indicate a properly functioning remote device. If you do not see the Busy LED flash, then the Mir-X controller is unable to communicate to the remote device. A flashing busy LED is your verification that all communications are functioning properly between Mir-X controllers.

Multiple Mir-X Pairs?

Multiple Mir-X Controllers can be used in one locations. One Pair of Mir-X controllers will not interfere with another Mir-X pair as they are isolated through the way they are designed. Mir-X Devices are paired together before shipment and will only communicate to each other, for this reason they will not interfere with other Mir-X controllers.

Contact Closure Inputs

A Mir-X controller has as many inputs as it has Relays. So a pair of 4 relay Mir-X controllers will have 4 relays on each board and 4 inputs on each board which are used for controlling the relays on the opposite Board, the same holds true for 1, 2, and 8 relay versions.

Mir-X 8-Input Screw Terminal - 8 inputs are only available on 8-Channel Mirx boards

Relay Outputs

Mir-X 4-Output Screw Terminal with Normally Open, Normally Closed and Common are available for each relay. 20 and 30 amp boards will connect directly to the relays. The 30 amp is a SPST relay and only has Common and normally open.  For more click here

Mir-X Controllers have 1, 2, 4, or 8 Relays integrated into the circuit board. A relay is similar to a switch. The only difference between a switch and a relay is the actual mechanism for changing the on/off status of the switch. On a switch, you manually push on a piece of metal or plastic to operate the switch. On a relay, an electric current is used to operate the switch. Relays do NOT provide a voltage output. They provide a contact closure output, exactly like the terminals found on a light switch at your local hardware store. Wiring to a relay will be slightly different depending on the model of Mir-X controllers you choose.

Attention: No Voltage Input

Please Note: Users must NEVER apply any voltage to an input on the Mir-X controller, these inputs are for Contact Closure connections only.

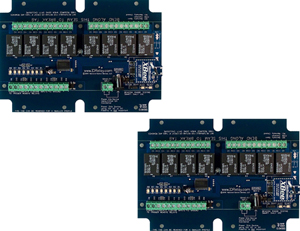

MirXR810

Relay Mirror Pair 2-Controllers Each with Eight 10-Amp SPDT Relay and 8 Contact Closure Inputs

• 8 - 10 Amp SPDT Relay(s)
• Wireless Interface
• Range: 300 ft. to 15 mi.
• 8 Contact Closure Inputs
• 8 Relay Outputs

$438.00

Full Description>

MirXR810_MXNET

2-Way LAN and Internet Communications Enabled Pair with Eight 10-Amp Relay + 8 Contact Closure Input

• 8 - 10 Amp SPDT Relay(s)
• Ethernet Interface
• Range: Unlimited
• 8 Contact Closure Inputs
• 8 Relay Outputs

$600.00

Full Description>

MirXR810_ZBT

Secure Wireless Relay Mirror Pair 2-Controllers Each with Eight 10-Amp SPDT Relay and 8 Contact Clos

• 8 - 10 Amp SPDT Relay(s)
• Bluetooth Interface
• Range: 100 ft to 300 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$550.00

Full Description>

MirXR810_ZRS

Wired Relay Mirror Pair 2-Controllers Each with Eight 10-Amp SPDT Relay and 8 Contact Closure Inputs

• 8 - 10 Amp SPDT Relay(s)
• Wired Interface
• Range: 1000 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$458.00

Full Description>

MirXR820

Relay Mirror Pair 2-Controllers Each with Eight 20-Amp SPDT Relay and 8 Contact Closure Inputs

• 8 - 20 Amp SPDT Relay(s)
• Wireless Interface
• Range: 300 ft. to 15 mi.
• 8 Contact Closure Inputs
• 8 Relay Outputs

$538.00

Full Description>

MirXR820_MXNET

2-Way LAN and Internet Communications Enabled Pair with Eight 20-Amp Relay + 8 Contact Closure Input

• 8 - 20 Amp SPDT Relay(s)
• Ethernet Interface
• Range: Unlimited
• 8 Contact Closure Inputs
• 8 Relay Outputs

$700.00

Full Description>

MirXR820_ZBT

Secure Wireless Relay Mirror Pair 2-Controllers Each with Eight 20-Amp SPDT Relay and 8 Contact Clos

• 8 - 20 Amp SPDT Relay(s)
• Bluetooth Interface
• Range: 100 ft to 300 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$650.00

Full Description>

MirXR820_ZRS

Wired Relay Mirror Pair 2-Controllers Each with Eight 20-Amp SPDT Relay and 8 Contact Closure Inputs

• 8 - 20 Amp SPDT Relay(s)
• 1 Contact Closure Input(s)
• Wired Interface
• Range: 1000 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$558.00

Full Description>

MirXR830

Relay Mirror Pair 2-Controllers Each with Eight 30-Amp SPST Relay and 8 Contact Closure Inputs

• 8 - 30 Amp SPST Relay(s)
• Wireless Interface
• Range: 300 ft. to 15 mi.
• 8 Contact Closure Inputs
• 8 Relay Outputs

$618.00

Full Description>

MirXR830_MXNET

2-Way LAN and Internet Communications Enabled Pair with Eight 30-Amp Relay + 8 Contact Closure Input

• 8 - 30 Amp SPST Relay(s)
• Ethernet Interface
• Range: Unlimited
• 8 Contact Closure Inputs
• 8 Relay Outputs

$780.00

Full Description>

MirXR830_ZBT

Secure Wireless Relay Mirror Pair 2-Controllers Each with Eight 30-Amp SPST Relay and 8 Contact Clos

• 8 - 30 Amp SPST Relay(s)
• Bluetooth Interface
• Range: 100 ft to 300 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$730.00

Full Description>

MirXR830_ZRS

Wired Relay Mirror Pair 2-Controllers Each with Eight 30-Amp SPST Relay and 8 Contact Closure Inputs

• 8 - 30 Amp SPST Relay(s)
• Wired Interface
• Range: 1000 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$638.00

Full Description>

MirXR85

Relay Mirror Pair 2-Controllers Each with Eight 5-Amp SPDT Relay and 8 Contact Closure Inputs

• 8 - 5 Amp SPDT Relay(s)
• Wireless Interface
• Range: 300 ft. to 15 mi.
• 8 Contact Closure Inputs
• 8 Relay Outputs

$398.00

Full Description>

MirXR85_MXNET

2-Way LAN and Internet Communications Enabled Pair with Eight 5-Amp Relay + 8 Contact Closure Inputs

• 8 - 5 Amp SPDT Relay(s)
• Ethernet Interface
• Range: Unlimited
• 8 Contact Closure Inputs
• 8 Relay Outputs

$560.00

Full Description>

MirXR85_ZBT

Secure Wireless Relay Mirror Pair 2-Controllers Each with Eight 5-Amp SPDT Relay and 8 Contact Closu

• 8 - 5 Amp SPDT Relay(s)
• Bluetooth Interface
• Range: 100 ft to 300 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$510.00

Full Description>

MirXR85_ZRS

Wired Relay Mirror Pair 2-Controllers Each with Eight 5-Amp SPDT Relay and 8 Contact Closure Inputs

• 8 - 5 Amp SPDT Relay(s)
• Wired Interface
• Range: 1000 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$418.00

Full Description>

MirXSSR8x

Relay Mirror Pair 2-Controllers Each with Eight Solid State SPST Relay and 8 Contact Closure Inputs

• 8 - Amp Solid-State Relay(s)
• Wireless Interface
• Range: 300 ft. to 15 mi.
• 8 Contact Closure Inputs
• 8 Relay Outputs
• MirX Series

$398.00

Full Description>

MirXSSR8x_MIX

Relay Mirror Pair 2-Controllers Each with Eight Solid State Mixed SPST Relay and 8 Contact Closure I

• 8 - Amp Solid-State Relay(s)
• Wireless Interface
• Range: 300 ft. to 15 mi.
• 8 Contact Closure Inputs
• 8 Relay Outputs

$398.00

Full Description>

MirXSSR8x_MIX_MXNET

2-Way LAN and Internet Communications Enabled Pair with Eight Solid State Mixed Relay and 8 Con

$560.00

Full Description>

MirXSSR8x_MXNET

2-Way LAN and Internet Communications Enabled Pair with Eight Solid State Relay and 8 Contact C

• 8 - Optional Amp Solid-State Relay(s)
• Web Interface
• MXNET Series

$560.00

Full Description>

MirXSSR8x_ZBT

Secure Wireless Relay Mirror Pair 2-Controllers Each with Eight Solid State SPST Relay and 8 Contact

• 8 - Optional Amp Solid-State Relay(s)
• Bluetooth Interface
• Range: 100 ft to 300 ft
• MirX Series

$510.00

Full Description>

MirXSSR8x_ZBT_MIX

Secure Wireless Relay Mirror Pair 2-Controllers Each with Eight Solid State Mix SPST Relay

• 8 - Amp Solid-State Relay(s)
• 8 Contact Closure Input(s)
• Bluetooth Interface
• Range: 300'
• MirX Series

$510.00

Full Description>

MirXSSR8x_ZRS

Wired Relay Mirror Pair 2-Controllers Each with Eight Solid State SPST Relay and 8 Contact Closure I

• 8 - Amp Solid-State Relay(s)
• Wired Interface
• Range: 1000 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$418.00

Full Description>

MirXSSR8x_ZRS_MIX

Wired Relay Mirror Pair 2-Controllers Each with Eight Solid State Mixed SPST Relay and 8 Contact Clo

• 8 - Amp Solid-State Relay(s)
• Wired Interface
• Range: 1000 ft
• 8 Contact Closure Inputs
• 8 Relay Outputs

$418.00

Full Description>
