Expansion Boards
UXP and XR Expansion Boards
|

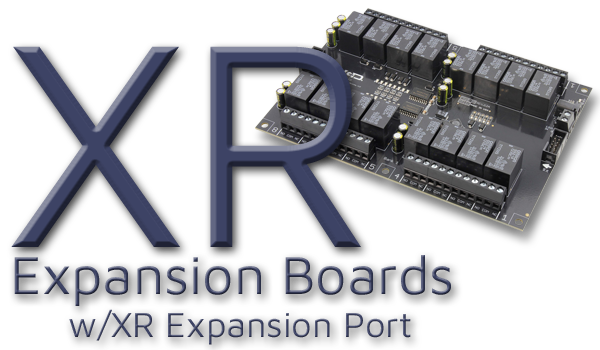

XR Expansion
XR Expansion Boards will allow you to add up to a total of 256 relays using the XR Port on your controller. These Expansion Boards are only compatible with ProXR series boards and are not able to work on their own. They get their instructions from the main controller.
Summary of XR Modules
- Compatible with ProXR Series Controllers ONLY
- Add up to 256 Relays to any ProXR Controller
- Includes 6" XR Expansion Cable
- Different Types of XR Expansion Modules can be Chained Together
- Onboard Relay Status LEDs
- Available with SPST, SPDT, DPDT, High-Current and Signal Switching Relays
- Power LEDs
- Optional Power Supply
UXP Expansion
UXP is a new standardized data port, specifically for the purpose of speaking to various expansion modules. If the controller you are considering is equipped with a UXP port, you can take advantage of extended commands to speak to our growing line of I/O expansion modules. You will find the UXP port on models with UXP in the part number.Summary of UXP Modules
- Compatible with UXP Series Controllers ONLY
- Not a stand-alone controller - MUST be used with a UXP Series Controller
- Add Contact Closure Inputs
- up to 256 Inputs
- Add Analog to Digital Inputs
- up to 48 Inputs
- Digital Potentiometer Outputs
- up to 256 Outputs
|
Expansion options that are available is covered in the above video. |
|
|
|
XR Expansion Modules
XR Expansion Boards have no on-board brains. They are entirely reliant on the brains of a "master" device. A master device is an NCD controller with an XR expansion port and a microprocessor of some kind. Some master devices are wireless, and some master devices have digital I/O and analog to digital conversion capabilities. Some master devices also have on-board relays. The main purpose of the XR port is to add relays to the main controller. When you run out of relays, simply plug in an XR expansion controller that is equipped with the kind of relays you need. All XR Expansion modules are compatible with each other so if you want to add different types of relays you can. For controllers that are equipped with an XR Expansion port (and are suitable master devices for XR Series Expansion Controllers) simply look for PROXR in the part number.
UXP Expansion Modules
Like the XR Expansion Modules the UXP Expansion Boards have no on-board brains. They are entirely reliant on the brains of a "master" device. The difference with he UXP Expansion is you don't have the ability to add relays with this port but to add applications to a controller (must be a UXP controller). If you need to add Analog to Digital Conversion (A/D), Contact Closure Inputs or Digital Potentiometers just plug in the appropriate expansion module to a board that is equipped with a UXP Expansion Port. You cannot daisy chain different types of modules to the same controller however. In other words if you plug in a potentiometer you will not be able to plug a contact closure or A/D module also. For controllers that are equipped with a UXP Expansion port (and are suitable master devices for UXP Series Expansion) simply look for UXP in the part number. All UXP Expansion Modules have an input and an output so you can simply daisy chain the boards together until you reach the number of contacts you are looking for.
Using XR and UXP Together
If you select a board that is equipped with both XR and UXP port you can use both ports simultaneously. This
allows you to add and control more relays through the XR port plus add A/D, Contact Closures or Potentiometers
to the same board through the UXP port. This can all be controlled through the same virtual COM port on your computer. These Expansion Boards can be purchase with the controller or purchased at a later time when you have a need to expand. To use both ports together you will need to select a controller that has UXP and PROXR in the part number to have both
ports available on the controller.
|
|
|
|
Articles
New to Computer Controlled Relay? Click the following links for helpful wireless articles to get you started. |
|
This video will introduce you to the world of ZB Mesh Networking and how we use it with our Relay Controllers.
Also read our Article on ZB Mesh Networking.
This video will show you how to setup the Hardware and Software portions of your ZB Mesh Relay Controller. After you've ensured that your Relay Controller is working properly with your computer you can begin writing custom software to control it or use the provided PROXR software.
Also read our Article on ZB Mesh Networking.
This video will show you how to troubleshoot your ZB Mesh Relay Controller using XCTU Software.
Also read our Article on ZB Mesh Networking.
This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.
Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.
This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.
This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.
This movie will explain the different expansion options that can be used with our controllers.
- 16 - Amp Relay(s)
- Serial Interface
- Contact Closure Inputs
- 16 Channels
- Serial Communication
- Expansion Interface
- Compatible with ProXR UXP Boards
- Add Expansion Modules up to 256 output channels
- 16 - Amp Relay(s)
- Serial Interface
- Contact Closure Inputs
- 16 Channels
- Serial Communication
- 32 - Amp Relay(s)
- Serial Interface
- Contact Closure Inputs
- 32 Channels
- Serial Communication
- Serial Interface
- Contact Closure Inputs
- Channels
- Serial Communication
- 16 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 16 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 16 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 16 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 16 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 16 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 16 - Amp Relay(s)
- XR Port Interface
- Expansion Series
- Contact Closure Inputs
- 16 Channels
- XR Port Communication
- 24 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 24 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 24 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 24 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 24 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 32 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 32 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 32 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 32 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 32 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 4 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 4 - 1 Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 4 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 4 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 4 - Amp SPST Relay(s)
- Expansion Interface
- Expansion Series
- 4 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 4 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 4 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 8 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 8 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 8 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 8 - Amp SPST Relay(s)
- Expansion Interface
- Expansion Series
- 8 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 16 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 8 - Amp SPDT Relay(s)
- Expansion Interface
- Expansion Series
- 8 - Amp DPDT Relay(s)
- Expansion Interface
- Expansion Series
- 16 - Amp Reed Relay(s)
- Expansion Interface
- Expansion Series
- 16 - Amp Reed Relay(s)
- Expansion Interface
- Expansion Series
- 4 - Amp Solid-State Relay(s)
- Expansion Interface
- Expansion Series
- 4 - Amp Solid-State Relay(s)
- Expansion Interface
- Expansion Series
- 8 - Amp Solid-State Relay(s)
- Expansion Interface
- Expansion Series
- 8 - Amp Solid-State Relay(s)
- Expansion Interface
- Expansion Series
|
