NCD Component Library Simplify Communications to all NCD Devices       Download NCD Component Library By downloading the NCD Component Library you will receive all the program samples found on this page and best of all it's FREE!! We want the user to be able to experiment with all the different samples available so as of right now the samples cannot be downloaded individually.  And best of all it's a free download! Plug-In For Visual Studio The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line.  The samples can be run in Visual Studio and fully customizable to your needs. Quick Summary of NCD Component Library Simplifies the communications to the NCD product line Samples available for specific applications  - A/D Conversion  - Motion Detection  - Keypad Data  - Potentiometer Values  - Storage Features  - Duration and Pulse Timing  - ProXR Timer Calibration and Testing  - Setting/Reading the Status of up to 256 Relays Samples available for specific relays  - Up to 8 Channel Relays  - 16 Channel Relays  - ProXR Relays  - SCAN Series Controllers  - ZigBee Relays  - ZB Mesh Relays Source code included so you can customize the sample to fit your needs All samples are FREE SignalSwitch Compatible   Download NCD Component Library  Over 40 samples included with this download!  Start by downloading the NCDComponentSetup.zip file and you will be communicating with any NCD device faster that ever!     Download Now   (click above picture to enlarge) We've "Started" the Programming for You With the NCD Component Library we've "started" the programming for you.  We say started because these are fully functioning samples but we've also included the source code so you can customize them to your exact needs.  Start by downloading the NCDComponentSetup.zip file and you will be communicating with any NCD device faster that ever!

NCD Component Library Samples

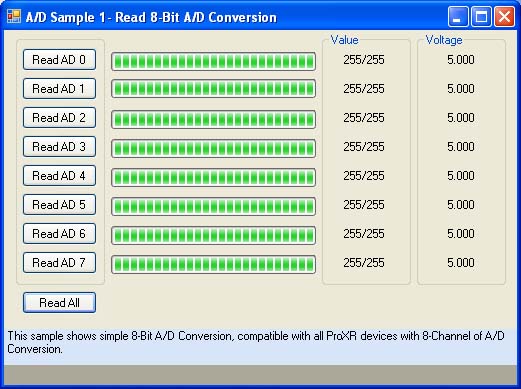

ADSample1.exe Analog to Digital Converter Sample 1		ADSample2.exe Analog to Digital Converter Sample 2
(click above picture to enlarge)		(click above picture to enlarge)

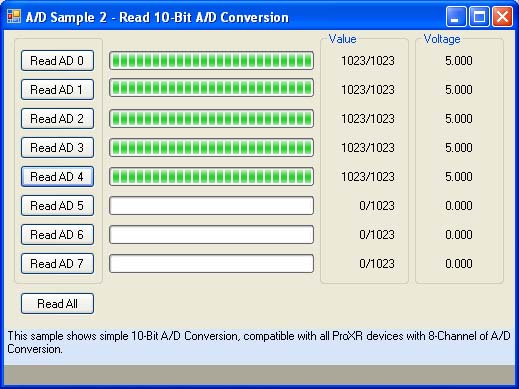

This sample shows simple 8-Bit A/D Conversion, compatible with all ProXR devices with 8-Channels of A/D Conversion.		This sample shows simple 10-Bit A/D Conversion, compatible with all ProXR devices with 8-Channels of A/D Conversion.

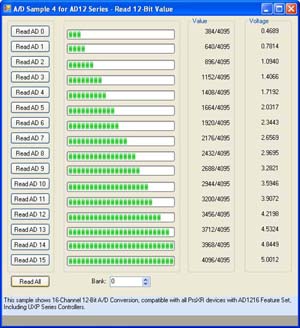

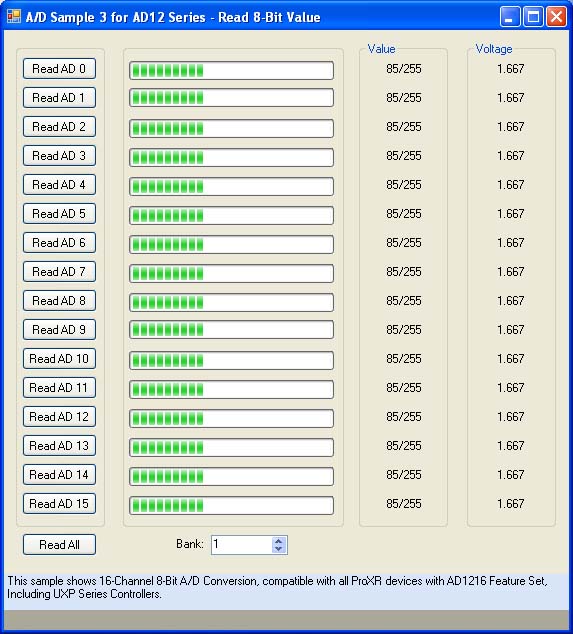

ADSample3.exe Analog to Digital Converter  Sample 3		ADSample4.exe Analog to Digital Converter Sample 4
(click above picture to enlarge)		(click above picture to enlarge)
This sample shows 16-Channel 8-Bit A/D Conversion, compatible with all ProXR devices with AD1216 Feature Set, Including UXP Series Controllers.		This sample shows 16-Channel 12-Bit A/D Conversion, compatible with all ProXR devices with AD1216 Feature Set, Including UXP Series Controllers.

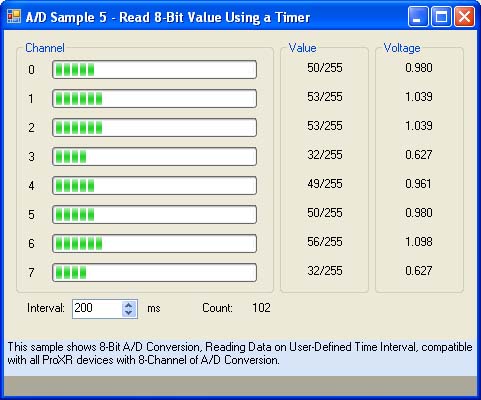

ADSample5.exe Analog to Digital Converter Sample 5		ADSample6.exe Analog to Digital Converter Sample 6
(click above picture to enlarge)		(click above picture to enlarge)
This sample shows 8-Bit A/D Conversion, Reading Data on User-Defined Time Interval, compatible with all ProXR devices with 8-Channels of A/D Conversion.		This sample shows 12-Bit A/D Conversion, Reading Data on User-Defined Time Interval, compatible with all ProXR devices with 8-Channels of A/D Conversion.

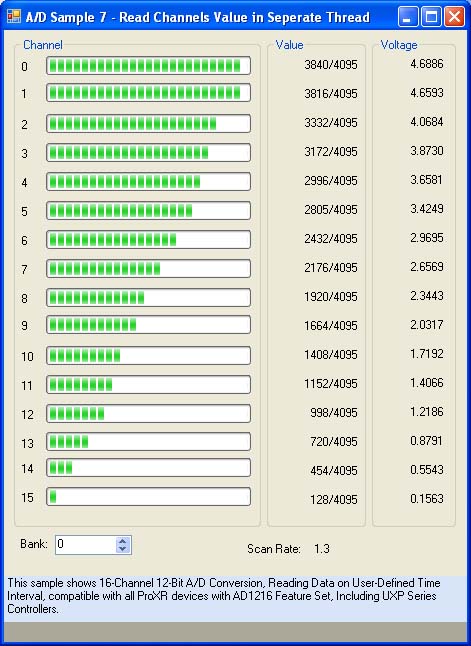

ADSample7.exe Analog to Digital Converter Sample 7		ADSample8.exe Analog to Digital Converter Sample 8
(click above picture to enlarge)		(click above picture to enlarge)
This sample shows 16-Channel 12-Bit A/D Conversion, Reading Data on User-Defined Time Interval, compatible with all ProXR devices with AD1216 Feature Set, Including UXP Series Controllers.		This sample reads 10-Bit Celsius Temperature using MCP9701A Temperature Sensor Directly Interfaced to AD Input. Compatible with all ProXR devices with 8-Channels of A/D Conversion.

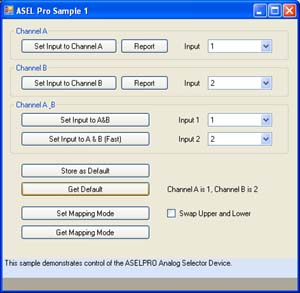

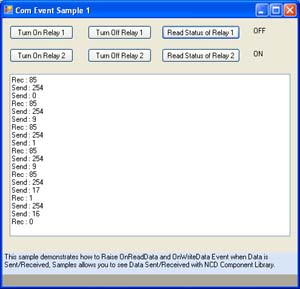

ASelProSample1.exe ASELPRO Sample 1		ComEventSample1.exe Com Event Sample 1
(click above picture to enlarge)		(click above picture to enlarge)

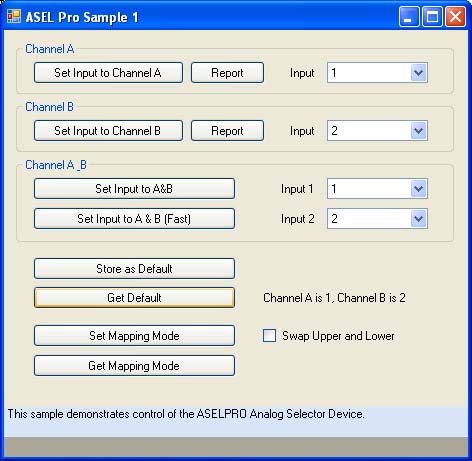

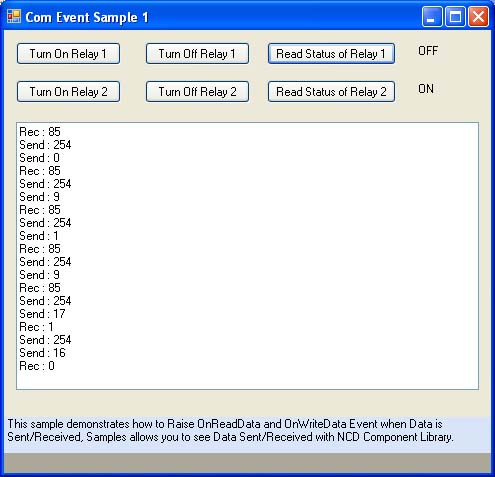

This sample demonstrates control of the ASELPRO Analog Selector Device.		This sample demonstrates how to Raise OnReadData and OnWriteData Event when Data is Sent/Received, Samples allows you to see Data Sent/Received with NCD Component Library.

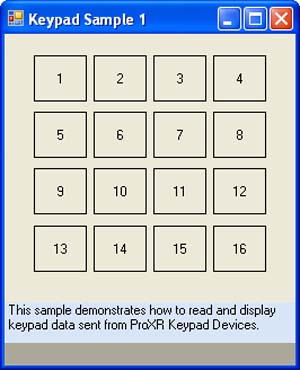

KeypadSample1.exe Keypad Sample 1		KeypadSample2.exe Keypad Sample 2
(click above picture to enlarge)		(click above picture to enlarge)

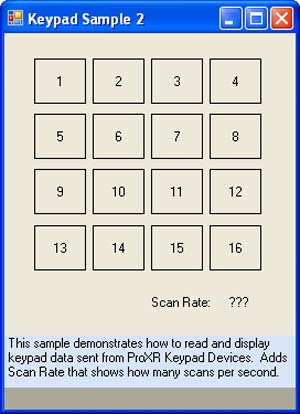

This sample demonstrates how to read and display keypad data sent from ProXR Keypad Devices.		This sample demonstrates how to read and display keypad data sent from ProXR Keypad Devices. Adds Scan Rate that shows how many scans per second.

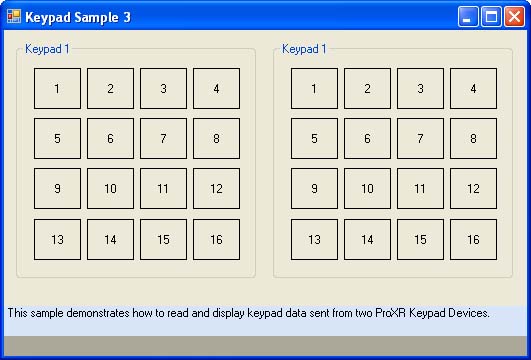

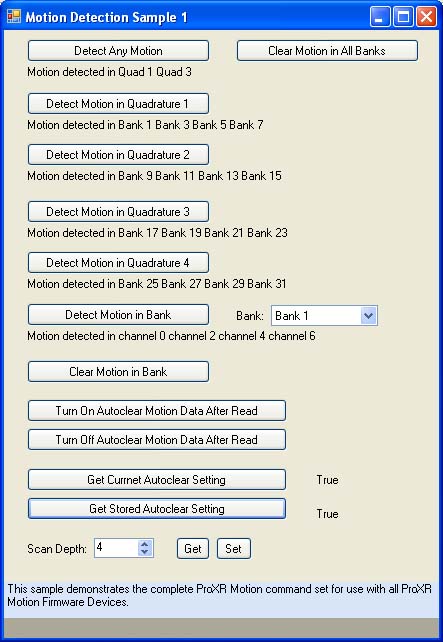

KeypadSample3.exe Keypad Sample 3		MotionDetectionSample1.exe Motion Detection Sample 1
(click above picture to enlarge)		(click above picture to enlarge)

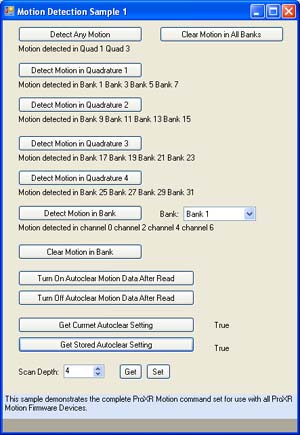

This sample demonstrates how to read and display keypad data sent from two ProXR Keypad Devices.		This sample demonstrates the complete ProXR Motion command set for use with all ProXR Motion Firmware Devices.

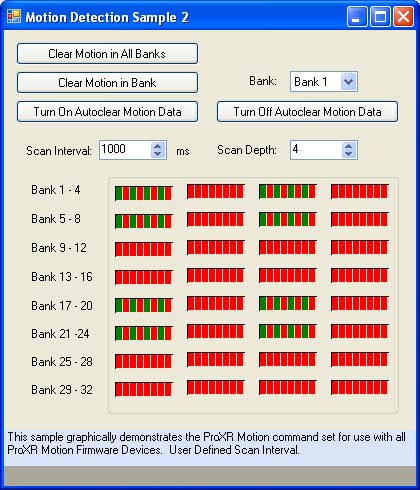

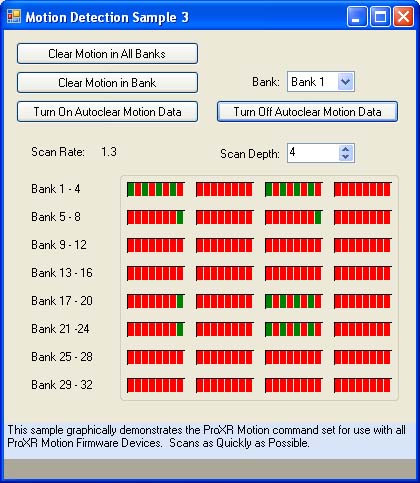

MotionDetectionSample2.exe Motion Detection Sample 2		MotionDetectionSample3.exe Motion Detection Sample 3
(click above picture to enlarge)		(click above picture to enlarge)

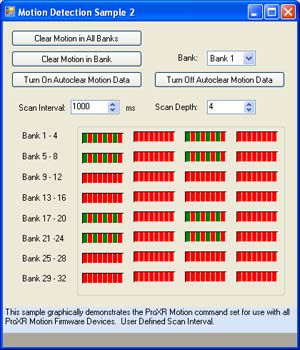

This sample graphically demonstrates the ProXR Motion command set for use with all ProXR Motion Firmware Devices. User Defined Scan Interval.		This sample graphically demonstrates the ProXR Motion command set for use with all ProXR Motion Firmware Devices. Scans as Quickly as Possible.

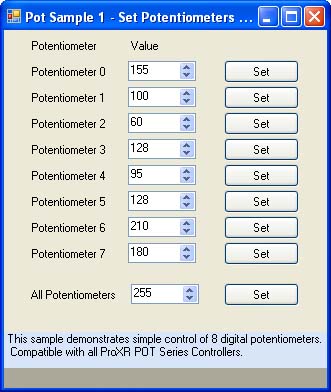

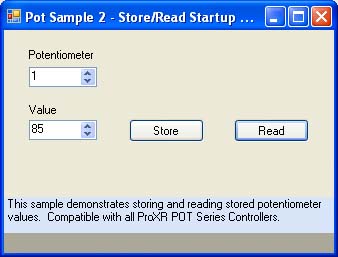

PotSample1.exe Potentiometer Sample 1		PotSample2.exe Potentiometer Sample 2
(click above picture to enlarge)		(click above picture to enlarge)

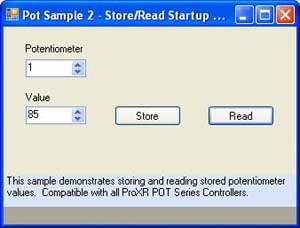

This sample demonstrates simple control of 8 digital potentiometers. Compatible with all ProXR POT Series Controllers.		This sample demonstrates storing and reading stored potentiometer values. Compatible with all ProXR POT Series Controllers.
PWMSample1.exe PWM Sample 1		R2XSample1.exe 2 Relay Control Sample 1
(click above picture to enlarge)		(click above picture to enlarge)

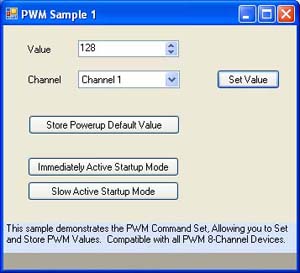

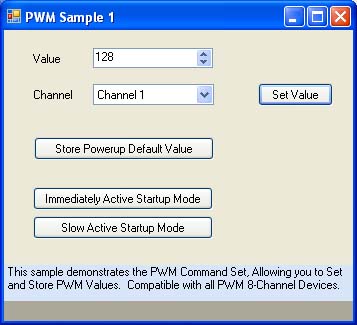

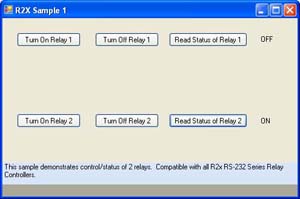

This sample demonstrates the PWM Command Set, Allowing you to Set and Store PWM Values. Compatible with all PWM 8-Channel Devices.		This sample demonstrates control/status of 2 relays. Compatible with all R2x RS-232 Series Relay Controllers.

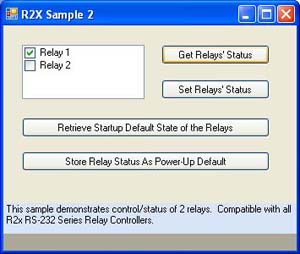

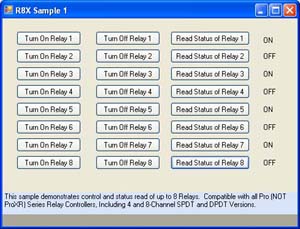

R2xSample2.exe 2 Relay Control Sample 2		R8XSample1.exe 8 Relay Control Sample 1
(click above picture to enlarge)		(click above picture to enlarge)
This sample demonstrates control/status of 2 relays and demonstrates data storage features. Compatible with all R2x RS-232 Series Relay Controllers.		This sample demonstrates control and status read of up to 8 Relays. Compatible with all Pro (NOT ProXR) Series Relay Controllers, Including 4 and 8-Channel SPDT and DPDT Versions.

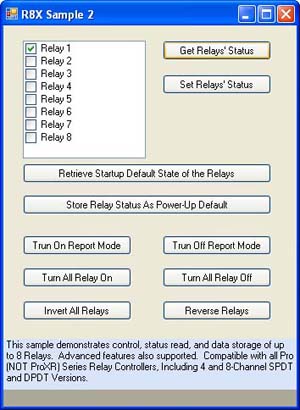

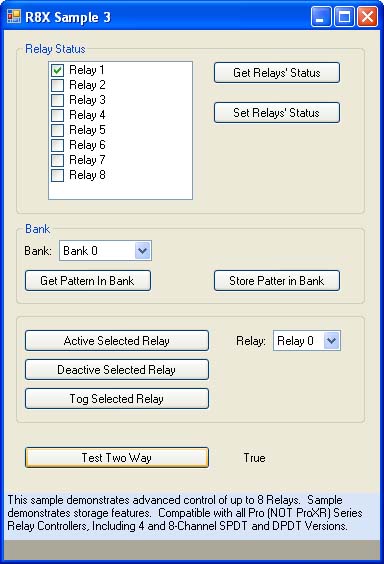

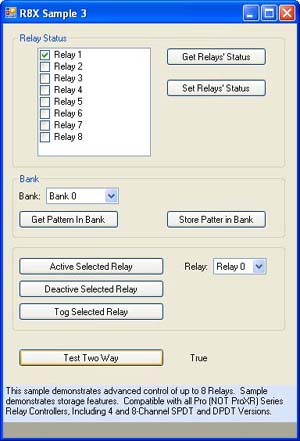

R8XSample2.exe 8 Relay Control Sample 2		R8XSample3.exe 8 Relay Control Sample 3
(click above picture to enlarge)		(click above picture to enlarge)
This sample demonstrates control, status read, and data storage of up to 8 Relays. Advanced features also supported. Compatible with all Pro (NOT ProXR) Series Relay Controllers, Including 4 and 8-Channel SPDT and DPDT Versions.		This sample demonstrates advanced control of up to 8 Relays. Sample demonstrates storage features. Compatible with all Pro (NOT ProXR) Series Relay Controllers, Including 4 and 8-Channel SPDT and DPDT Versions.

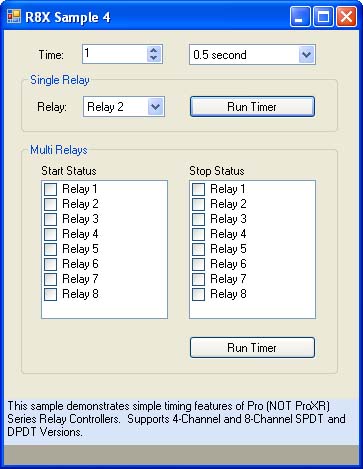

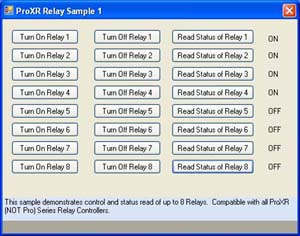

R8XSample4.exe 8 Relay Control Sample 4		ProXRRelaySample1.exe Up to 8 Channel ProXR Sample 2
(click above picture to enlarge)		(click above picture to enlarge)
This sample demonstrates simple timing features of Pro (NOT ProXR) Series Relay Controllers. Supports 4-Channel and 8-Channel SPDT and DPDT Versions.		This sample demonstrates control and status read of up to 8 Relays. Compatible with all ProXR (NOT Pro) Series Relay Controllers.

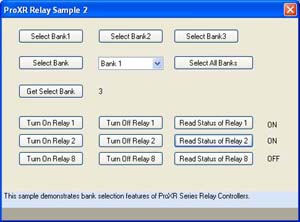

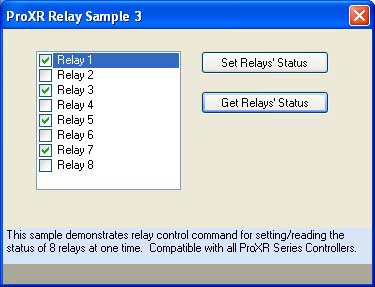

ProXRRelaySample2.exe ProXR Bank Selection Features		ProXRRelaySample3.exe Setting/Reading the Status of 8 Relays at One Time
(click above picture to enlarge)		(click above picture to enlarge)
This sample demonstrates bank selection features of ProXR Series Relay Controllers.		This sample demonstrates relay control command for setting/reading the status of 8 relays at one time. Compatible with all ProXR Series Controllers.

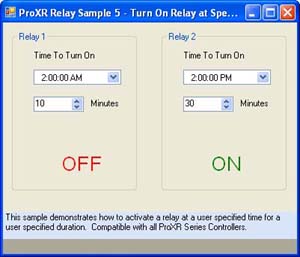

ProXRRelaySample4.exe Setting/Reading the Status of up to 256 Relays		ProXRRelaySample5.exe Activate a Relay with Specified Time/Duration
(click above picture to enlarge)		(click above picture to enlarge)

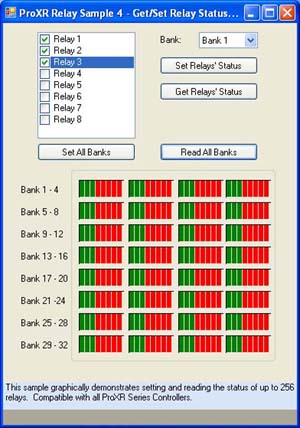

This sample graphically demonstrates setting and reading the status of up to 256 relays. Compatible with all ProXR Series Controllers.		This sample demonstrates how to activate a relay at a user specified time for a user specified duration. Compatible with all ProXR Series Controllers.

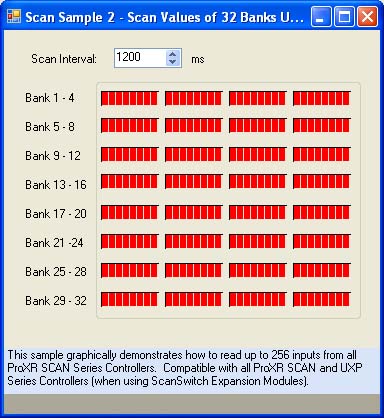

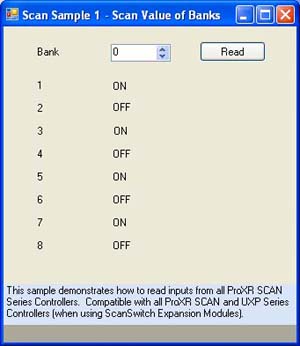

ScanSample1.exe Read Inputs From all ProXR SCAN Series Controllers		ScanSample2.exe Read up to 256 Inputs From All ProXR SCAN Series
(click above picture to enlarge)		(click above picture to enlarge)

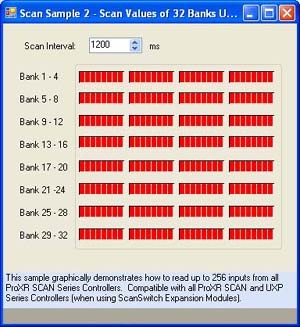

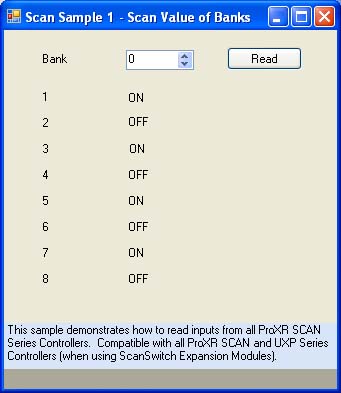

This sample demonstrates how to read inputs from all ProXR SCAN Series Controllers. Compatible with all ProXR SCAN and UXP Series Controllers (when using ScanSwitch Expansion Modules).		This sample graphically demonstrates how to read up to 256 inputs from all ProXR SCAN Series Controllers. Compatible with all ProXR SCAN and UXP Series Controllers (when using ScanSwitch Expansion Modules).

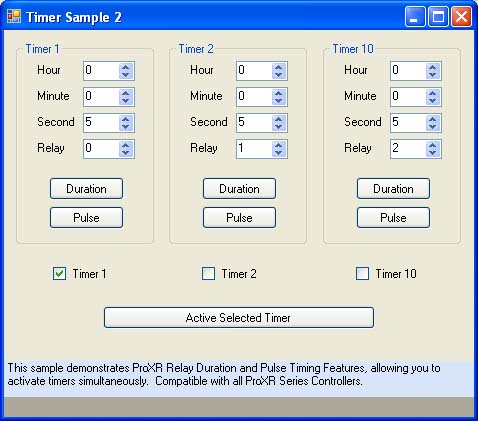

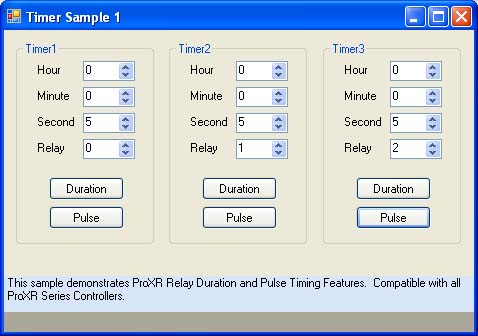

TimerSample1.exe ProXR Relay Duration and Pulse Timing Features		TimerSample2.exe Timing Features to Activate Timers Simultaneously
(click above picture to enlarge)		(click above picture to enlarge)
This sample demonstrates ProXR Relay Duration and Pulse Timing Features. Compatible with all ProXR Series Controllers.		This sample demonstrates ProXR Relay Duration and Pulse Timing Features, allowing you to activate timers simultaneously. Compatible with all ProXR Series Controllers.
TimerSample3.exe Timing Features, Including Query Timer Commands		TimerSample4.exe ProXR Timer Calibration and Testing
This sample demonstrates ProXR Relay Duration and Pulse Timing Features, including Query Timer commands. Compatible with all ProXR Series Controllers.		This sample demonstrates ProXR Timer Calibration and Testing, Useful for Redefining the Length of a Second in a ProXR Controller. Compatible with all ProXR Series Controllers.

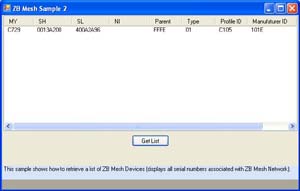

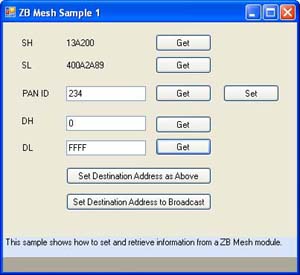

ZBMeshSample1.exe Set & Retrieve Information From a ZB Mesh module		ZBMeshSample2.exe How to Retrieve a List of ZB Mesh Devices
(click above picture to enlarge)		(click above picture to enlarge)

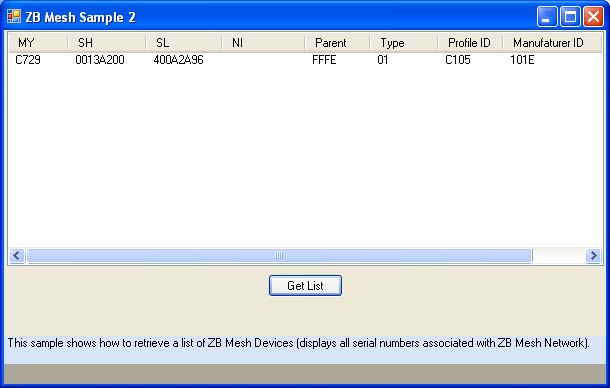

This sample shows how to set and retrieve information from a ZB Mesh module.		This sample shows how to retrieve a list of ZB Mesh Devices (displays all serial numbers associated with ZB Mesh Network).

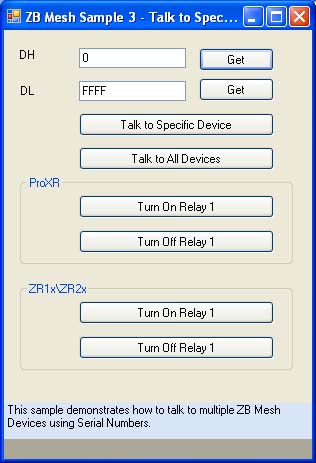

ZBMeshSample3.exe Talk to Multiple ZB Mesh Devices Using Serial Numbers		ZigBeeSerial1Sample1.exe Set and Retrieve Information From a ZigBee Series
(click above picture to enlarge)		(click above picture to enlarge)

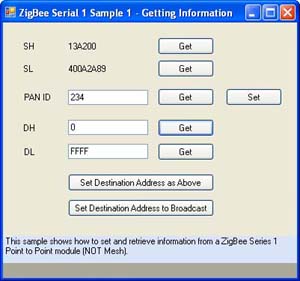

This sample demonstrates how to talk to multiple ZB Mesh Devices using Serial Numbers.		This sample shows how to set and retrieve information from a ZigBee Series 1 Point to Point module (NOT Mesh).
ZigBeeSerial1Sample2.exe Talk to Multiple ZigBee Series 1 Point to Point Devices
(click above picture to enlarge)

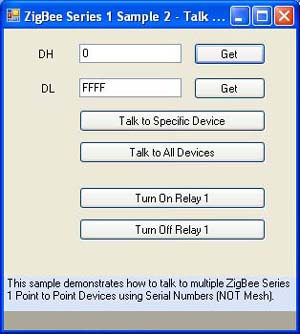

This sample demonstrates how to talk to multiple ZigBee Series 1 Point to Point Devices using Serial Numbers (NOT Mesh).
